Disassembling Steering Column Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

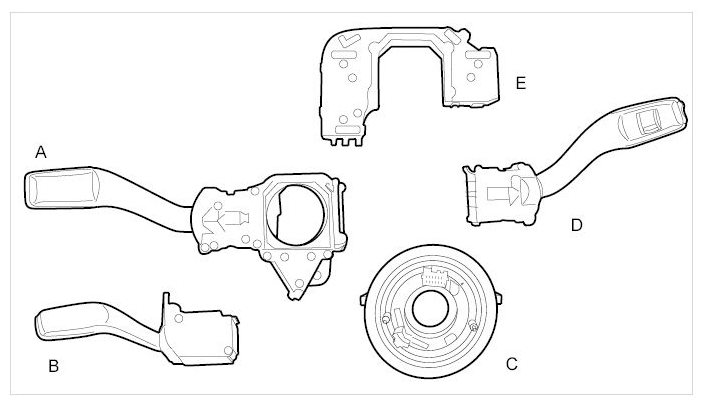

Fig 1: Overview Of Disassembling And Assembling Steering Column Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Direction indicator switch
GRA switch
Contact unit for airbag
Switch for wiper and washer system
Electronic unit

Information

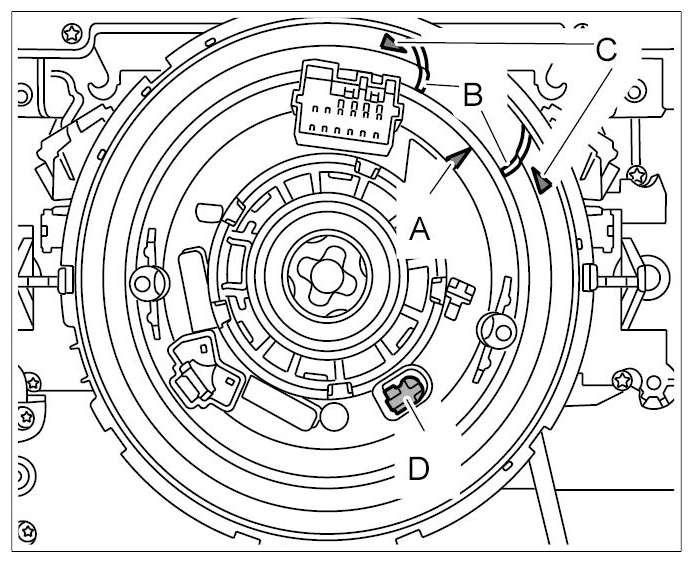

Ensure that the arrow -A- of the rotor is positioned between the markings -B- of the arrows -C- of the airbag contact unit and that the locking element -D- is engaged.

Fig 2: Identifying Steering Column Switch Designations
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

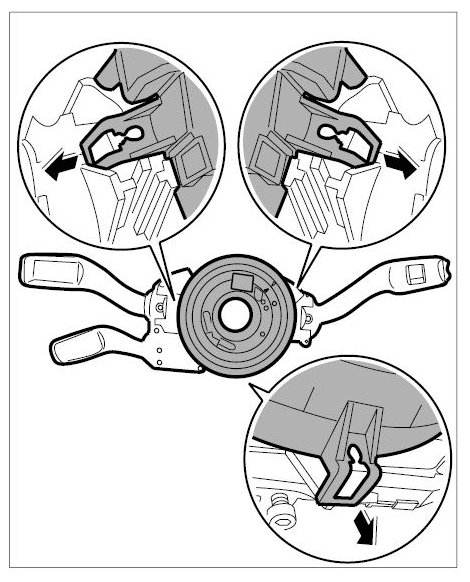

Lift up the three retaining tabs carefully and remove airbag contact unit -C- .

Fig 3: Removing Airbag Contact Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

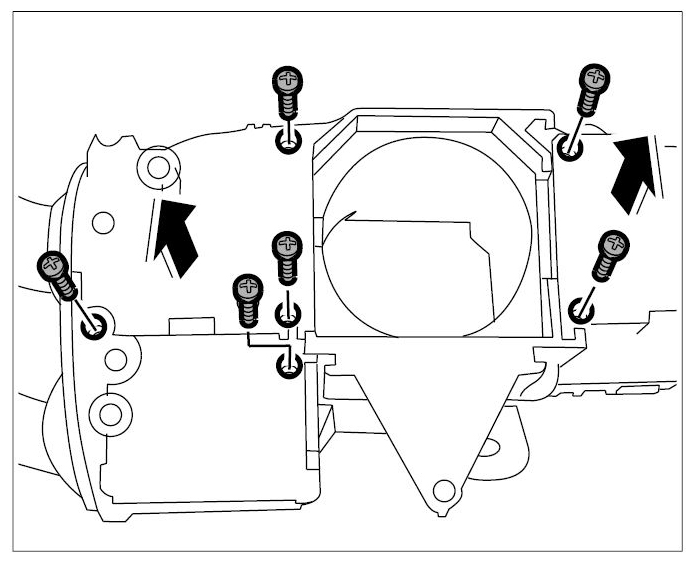

Unscrew the six fastening screws.

Fig 4: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

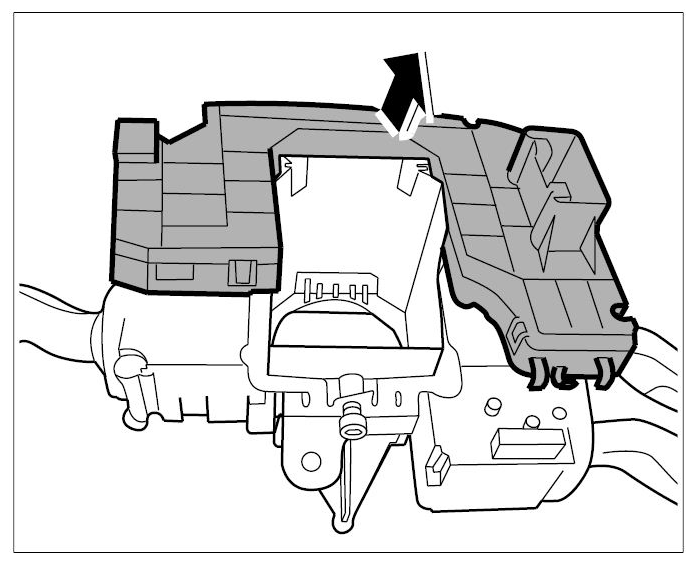

Turn the steering column switch round and remove the electronic unit -E- .

Fig 5: Removing Electronic Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

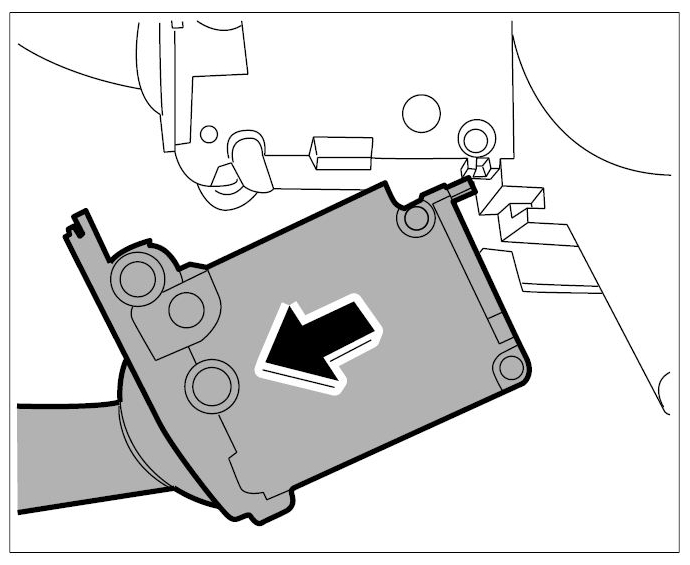

Pull the GRA switch -B- downward and disengage.

Fig 6: Removing GRA Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

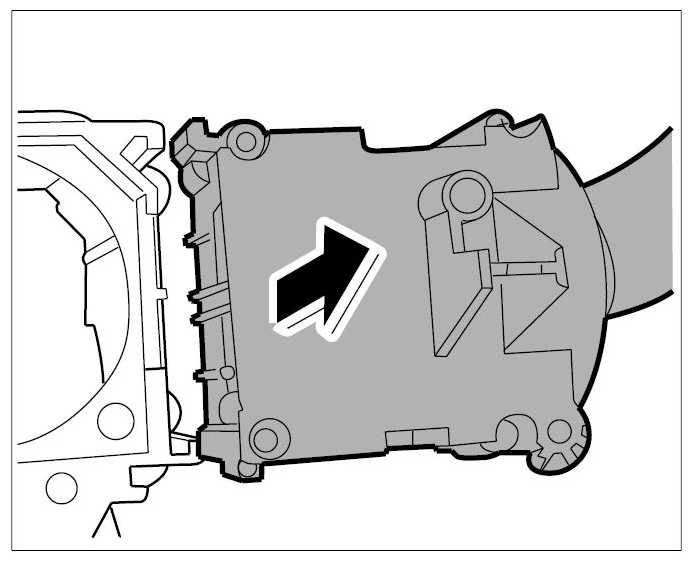

Pull switch for wiper and washer system -D- up and out of the mount.

Fig 7: Removing Switch For Wiper And Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
