Removing Hazard Warning Light Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

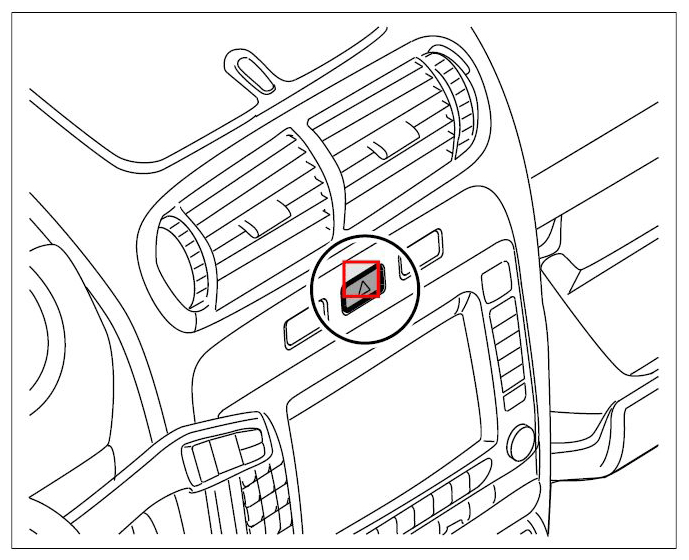

Fig 1: Overview Of Hazard Warning Light Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.
Reach into the opening left by the removed PCM or radio, press the two retaining clips -arrows 1- together and remove the switch -arrow 2- to the front.

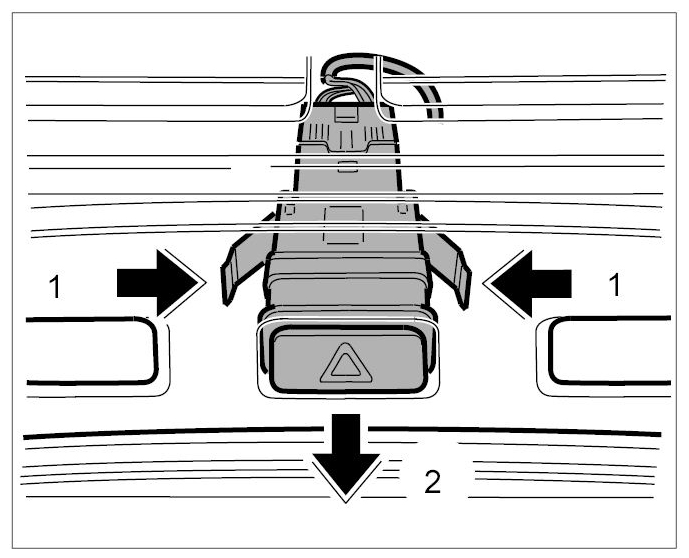

Fig 2: Removing Hazard Warning Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press locking element of plug connection and remove connector.

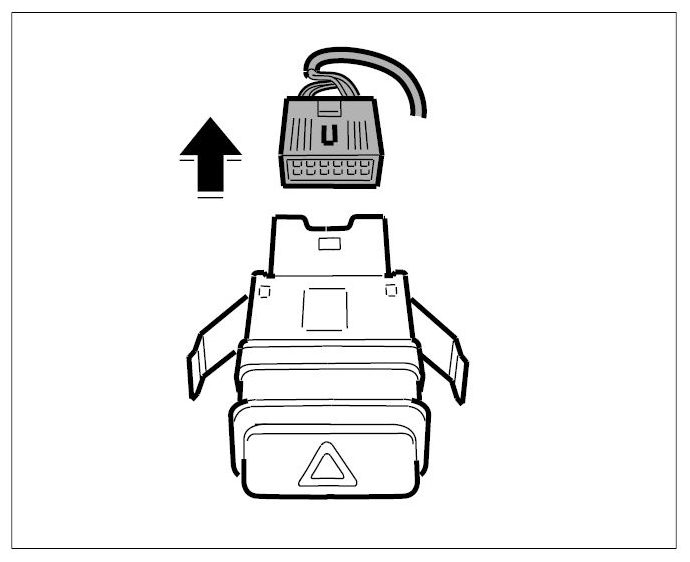

Fig 3: Removing Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
