Installing Hazard Warning Light Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

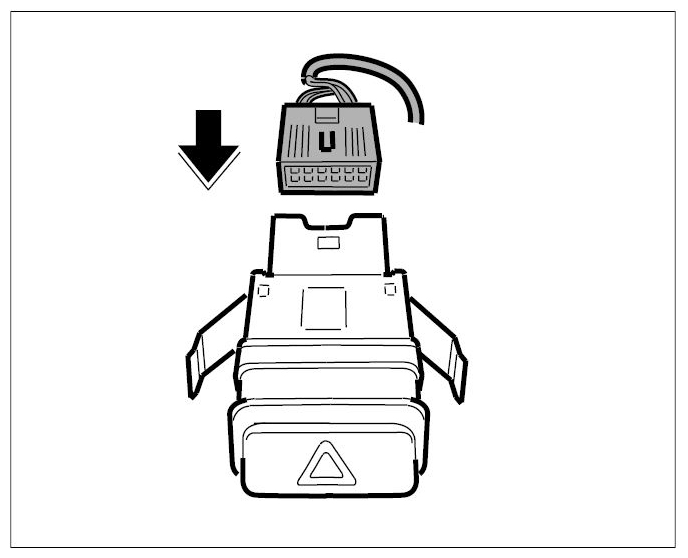

Insert connector through the opening in the retaining bracket and push connector onto the hazard warning light switch until it is felt to engage.

Fig 1: Plugging In Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The retaining clips must engage.

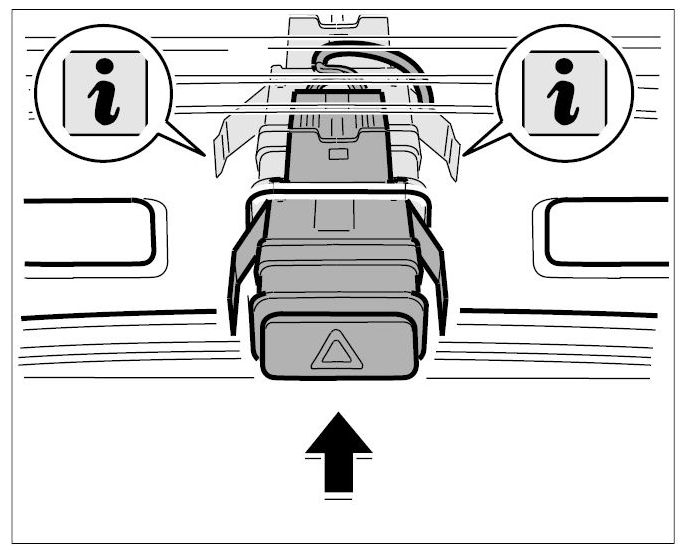

Slide the switch into the retaining bracket until it clicks into place.

Fig 2: Installing Hazard Warning Light Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
