Installing Tail Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Install tail light.
1. 1.1. Push connector -4- onto the tail light -1- (-Arrow A- ) until it engages securely -4- .
  Information
  - Check condition of clip nut and replace it if necessary.
2. 1.2. Press tail light -1- with the ball head -2- into the clip nut -3- and position it on the body.

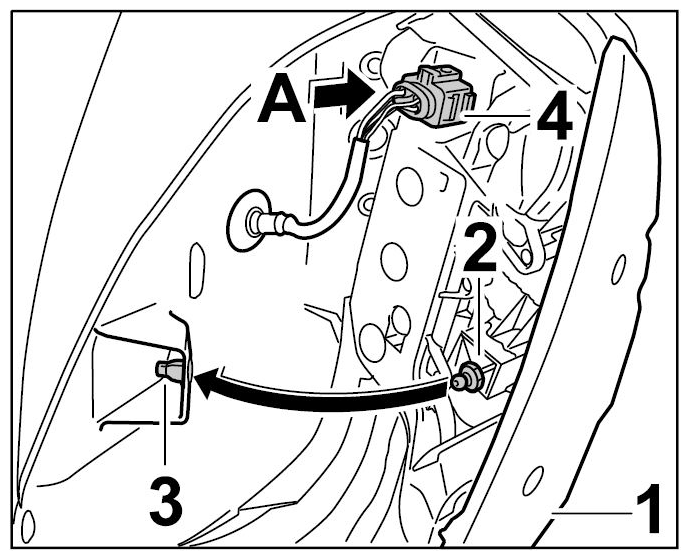

  Fig 1: Connecting Tail Light Connector
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screws -2- and press in caps -1- .

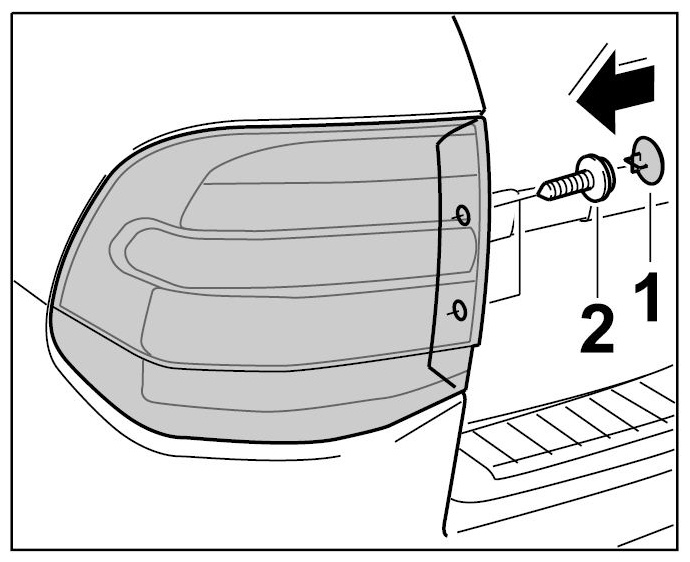

Fig 2: Screwing In Fastening Screws For Tail Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
