Removing Dipped Beam Halogen Bulb

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover.
    1. 1.1. Release cover -1-  at the two clips -Arrows A-  .
    2. 1.2. Swivel the cover -1-  out of the guides on the main headlight and remove it -Arrows B-  .

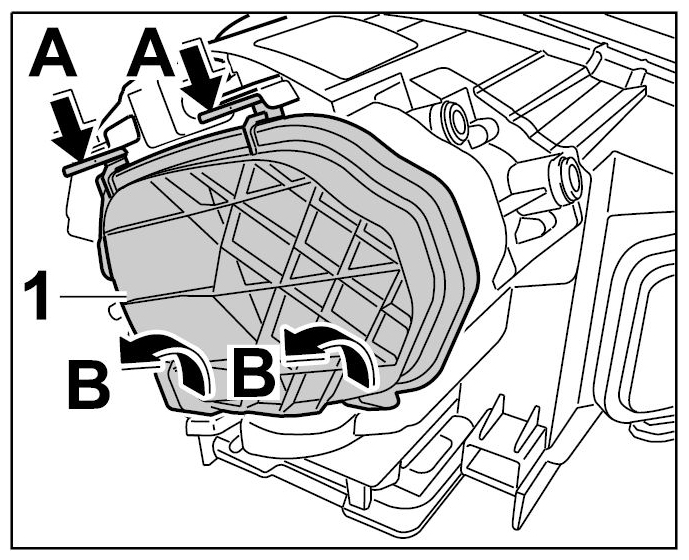

      Fig 1: Removing Cover
      G09415343Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn bulb holder for dipped beam headlight -1-  anti-clockwise -Arrow A-  and take it out of the main headlight -arrow B-  .
    Fig 2: Removing Bulb Holder For Dipped Beam Headlight
    G09415344Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull dipped beam bulb -1-  out of the bulb holder for the dipped beam headlight -2-  (-Arrow-  ).

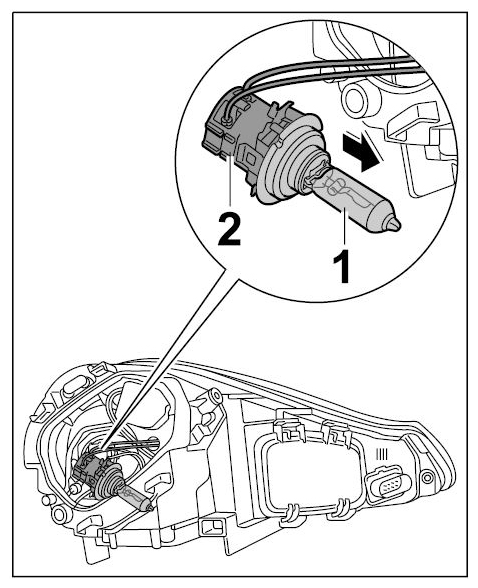

    Fig 3: Removing Dipped Beam Bulb
    G09415345Courtesy of PORSCHE CARS NORTH AMERICA, INC.
