Removing Auxiliary High Beam Halogen Bulb

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove cover.
    1. 1.1. Release cover -1-  at the two clips -Arrows A-  .
    2. 1.2. Swivel the cover -1-  out of the guides on the main headlight and remove it -Arrows B-  .

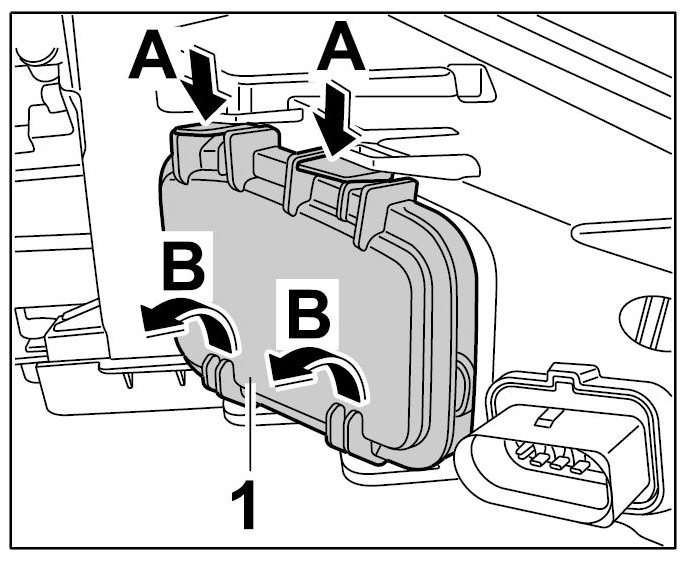

      Fig 1: Removing Cover
      G09415346Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Turn bulb holder for auxiliary high beam headlight -1-  anti-clockwise -Arrow A-  and take it out of the main headlight -arrow B-  .

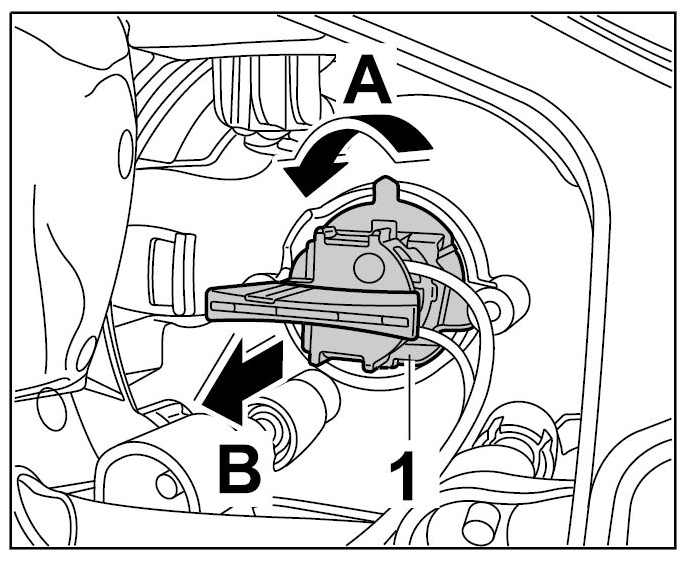

    Fig 2: Removing Bulb Holder For Auxiliary High Beam Headlight
    G09415347Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Pull auxiliary high beam bulb -1-  out of the bulb holder for the auxiliary high beam headlight -2-  (-Arrow-  ).

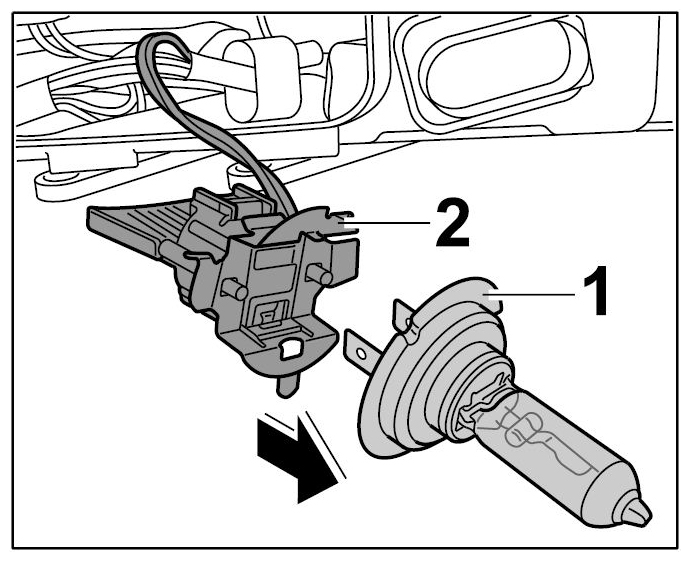

    Fig 3: Removing Auxiliary High Beam Headlight Bulb
    G09415348Courtesy of PORSCHE CARS NORTH AMERICA, INC.
