Removing Cornering Light Halogen Bulb

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

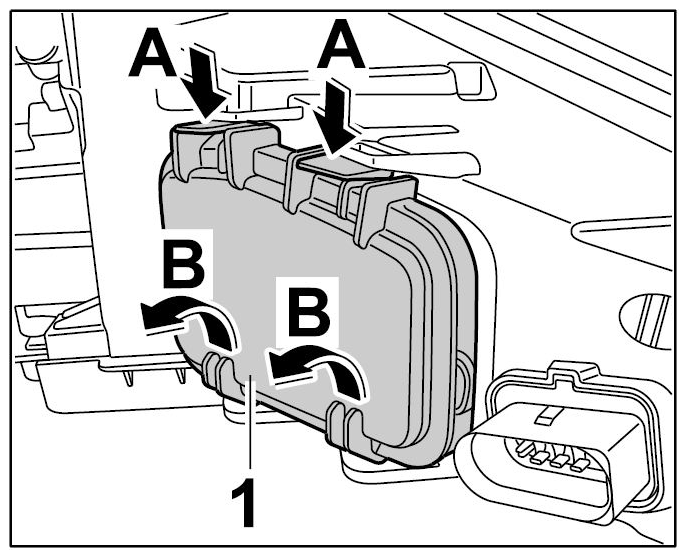

  1. Remove cover.
    1. 1.1. Release cover -1-  at the two clips -Arrows A-  .
    2. 1.2. Swivel the cover -1-  out of the guides on the main headlight and remove it -Arrows B-  .
      Fig 1: Removing Cover
      G09415349Courtesy of PORSCHE CARS NORTH AMERICA, INC.

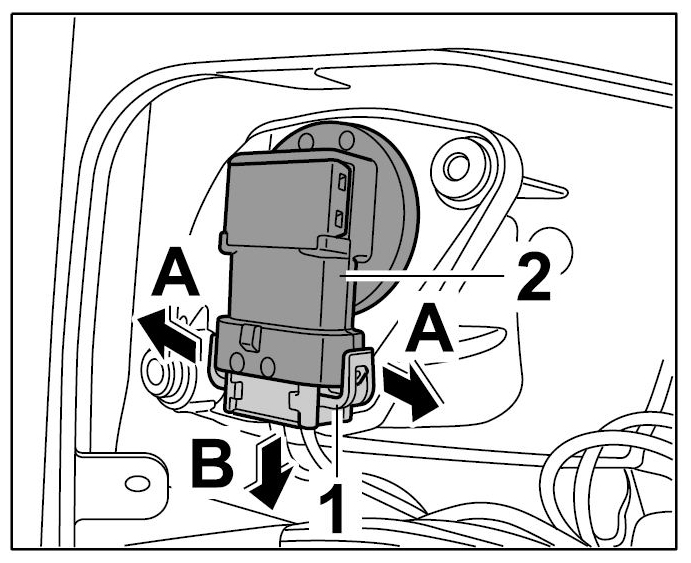

  2. Release connector -1-  (-Arrows A-  ) and pull it off the cornering light bulb -2-  (-Arrow B-  ).
    Fig 2: Pulling Off Connector On Cornering Light Bulb
    G09415350Courtesy of PORSCHE CARS NORTH AMERICA, INC.

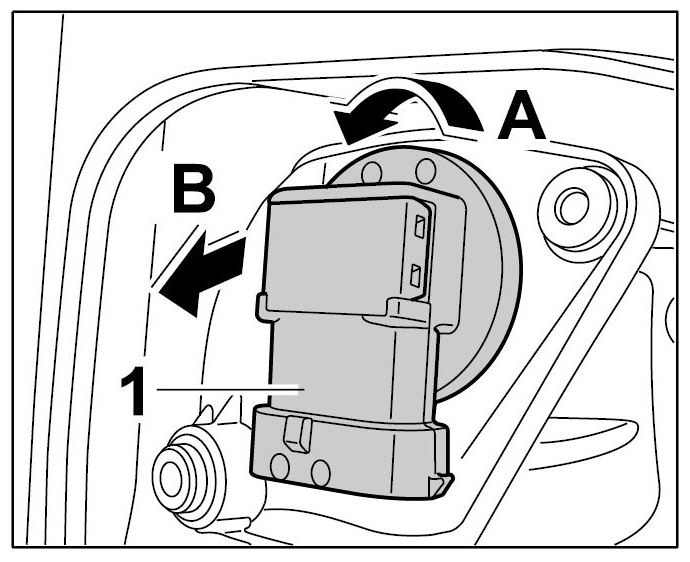

  3. Turn cornering light bulb -1-  anti-clockwise -Arrow A-  and take it out of the main headlight -Arrow B-  .
    Fig 3: Removing Cornering Light Bulb
    G09415351Courtesy of PORSCHE CARS NORTH AMERICA, INC.
