Adjusting Headlight Mounting

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the main headlight -arrows A, B, C-  to align it to the contour of the wing -Arrows-  . → Gap dimension: 3 mm

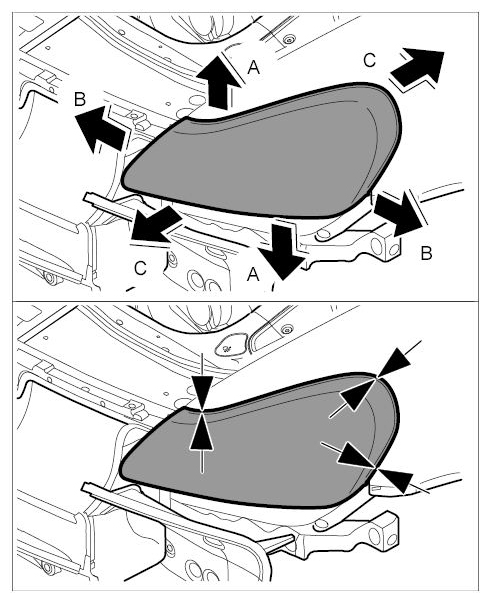

    Fig 1: Adjusting Headlight Mounting
    G09415317Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Maintain the prescribed gap dimension of the front guide rail for the front apron. → Installing front apron
  3. First tighten the two screws at the front -2-  , then the two at the back -1-  and check the gap dimension. Loosen the headlight mounting if necessary and re-adjust it. → Tightening torque: 7 Nm (5.0 ftlb.)+/-0.5 Nm (+/-0.5 ftlb.)

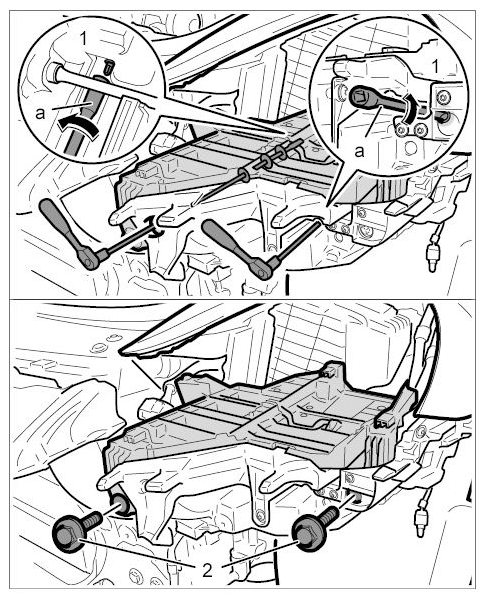

    Fig 2: Fastening Points For Headlight Mounting
    G09415318Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Remove and install the main headlight at least 3 times, then check the gap dimension again. Re-adjust the headlight mounting if necessary.
