Installing Main Light Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. -A-  Insert the light switch plug until it clicks into place.

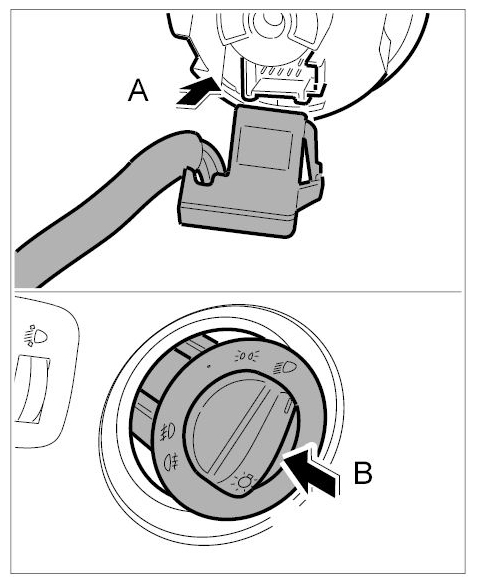

    Fig 1: Inserting Light Switch Plug
    G09415299Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. -B-  Insert the light switch to its limit and turn the rotary knob anti-clockwise.
