Removing The Electrohydraulic Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove electrohydraulic control unit. To do this, unscrew fastening screws -arrows-  and remove the control unit.

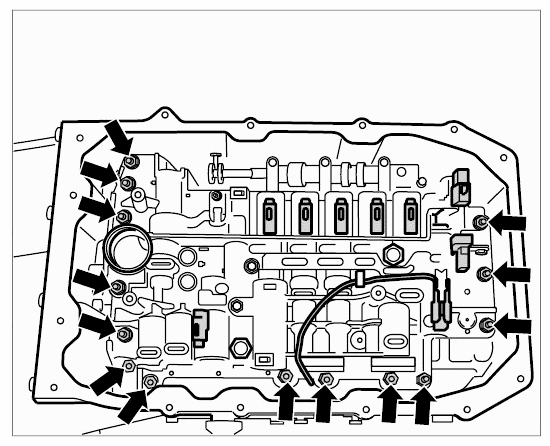

    Fig 1: Locating Control Unit Fastening Screws
    G09410786Courtesy of PORSCHE CARS NORTH AMERICA, INC.
