Removing ATF Thermostat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Place oil collecting container underneath the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.

Information
- Counter when loosening the ATF lines.

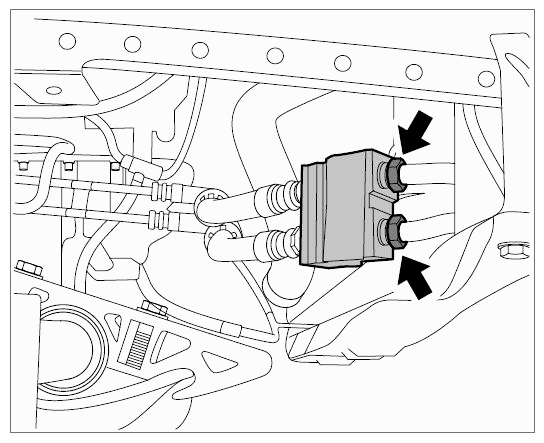

Undo ATF line screw connection on cooler side -arrows- at the thermostat.

Fig 1: Locating Mount For ATF Line To Thermostat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

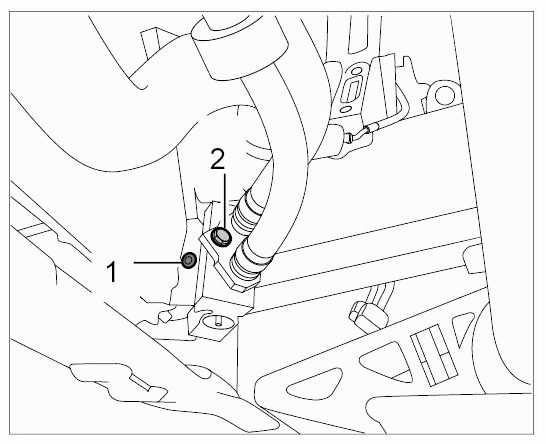

Unscrew fastening screw -2- securing ATF line to thermostat.

Fig 2: Identifying ATF Line To Thermostat Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -1- securing ATF thermostat to cooler.

Fig 3: Identifying ATF Line To Thermostat Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- To prevent oil from spreading into the body front section, a material 00000 should be held underneath.

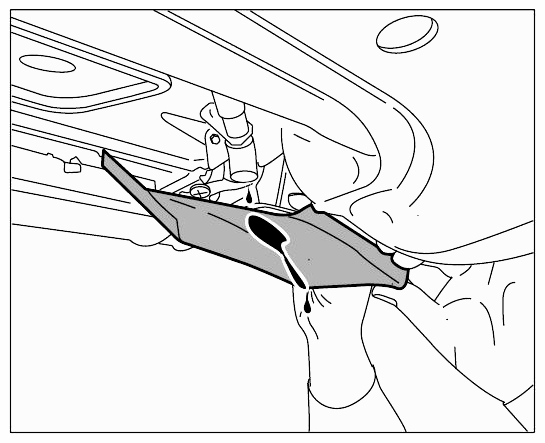

Hold shop-made tool material 00000 -illustration- under the ATF thermostat.

Fig 4: Discharging Chute
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect ATF lines from thermostat and drain off ATF.
Remove thermostat.
