Installing ATF Thermostat

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Overview Of ATF Thermostat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The sealing rings at the ends of the ATF lines on the transmission and cooler sides must be replaced before installation.

Replace sealing rings on the ATF lines and coat with ATF.
Connect transmission-side ATF lines to thermostat. Insert the upper line first.
Insert ATF cooler lines.
Tighten fastening screw -1- securing ATF thermostat to cooler. → Tightening torque: 3.5 Nm (2.5 ftlb.)

Fig 2: Identifying ATF Line To Thermostat Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -2- securing ATF line to thermostat. → Tightening torque: 10 Nm (7.5 ftlb.)

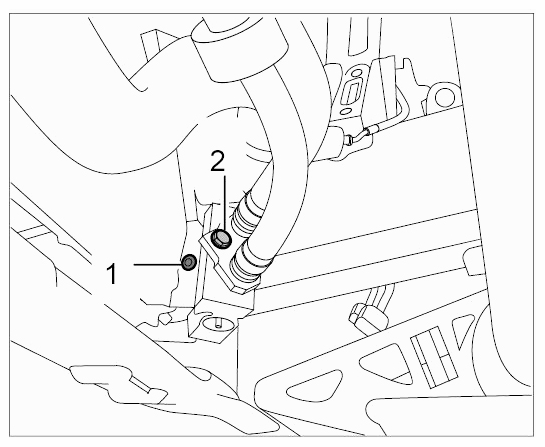

Fig 3: Identifying ATF Line To Thermostat Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Counter when fastening the ATF lines.
Screw in ATF line screws on cooler side -arrow- at the thermostat. → Tightening torque: 23 Nm (17 ftlb.)

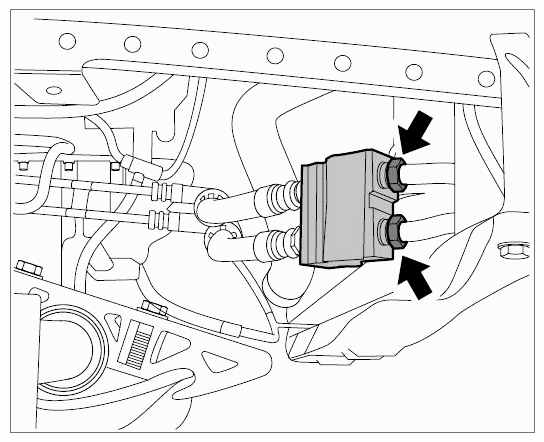

Fig 4: Locating Mount For ATF Line To Thermostat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew ATF inspection plug -2- and fill in ATF until a constant discharge is visible at the lifting tube.

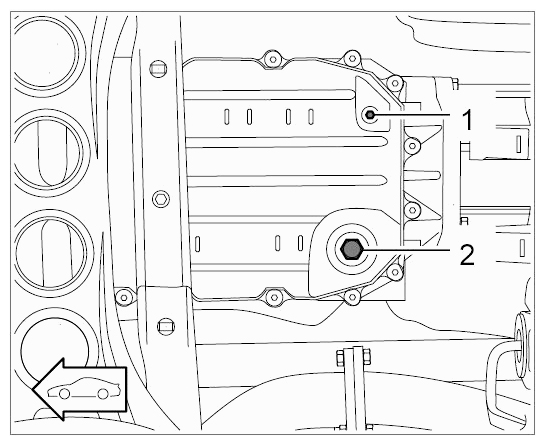

Fig 5: Identifying Oil Drain And Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in ATF inspection plug -2- with new sealing ring. → Tightening torque: 70 Nm (52 ftlb.)
