Removing Sealing Ring For Output Shaft

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

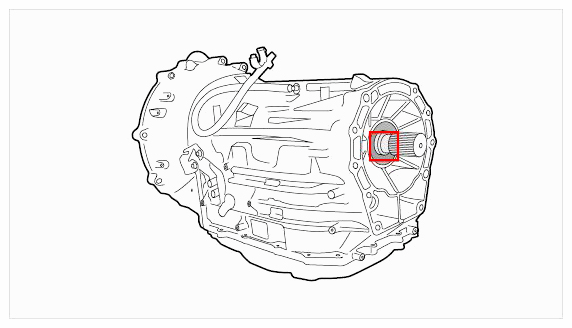

Fig 1: Overview Of Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw countersunk head bolt and bolt adapter from slide hammer kit Nr.168 into sealing ring -arrow- .

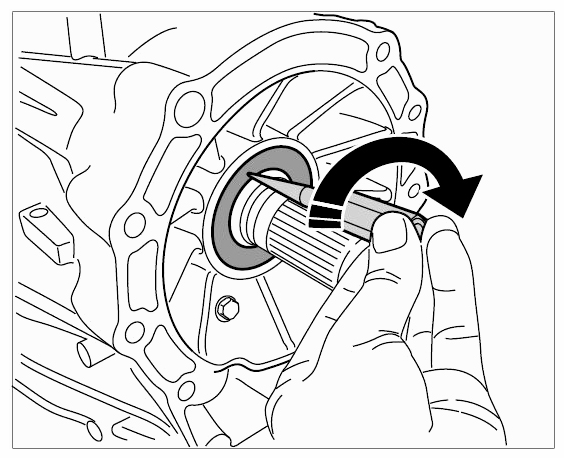

Fig 2: Screwing Screws Into Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

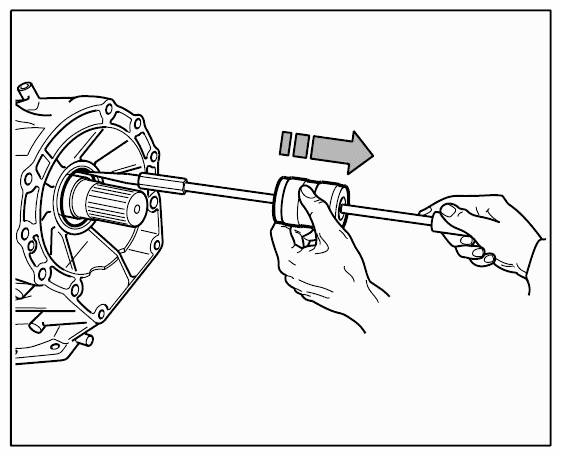

Screw on slide hammer from slide hammer kit Nr.168 and remove sealing ring -illustration- .

Fig 3: Overview Of Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
