Installing Sealing Ring For Output Shaft

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

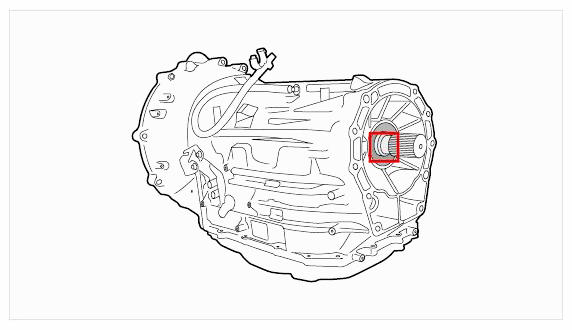

Fig 1: Removing Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

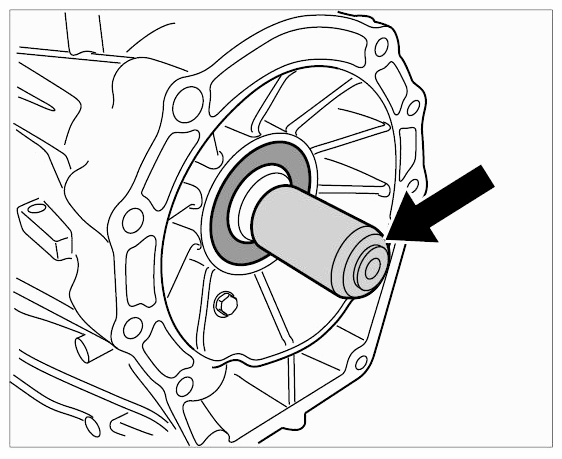

Push special tool protective sleeve T10186 -arrow- onto output shaft.

Fig 2: Locating Protective Sleeve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push on sealing ring.

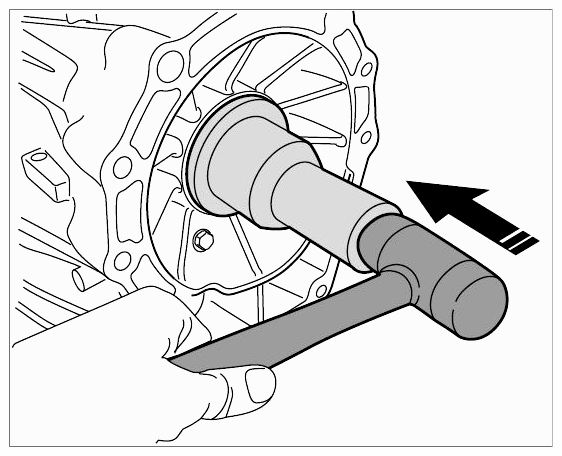

Remove special tool protective sleeve T10186 and drive in sealing ring flush using special tool pressure piece T10180 -arrow- .

Fig 3: Driving Sealing Ring Using Special Tool Pressure Piece (T10180)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
