Installing ATF Cooler

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

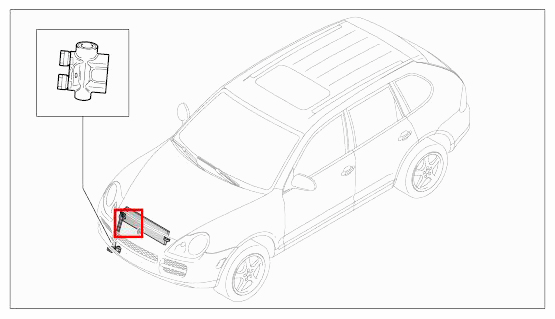

Fig 1: Overview Of ATF Thermostat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position ATF cooler.

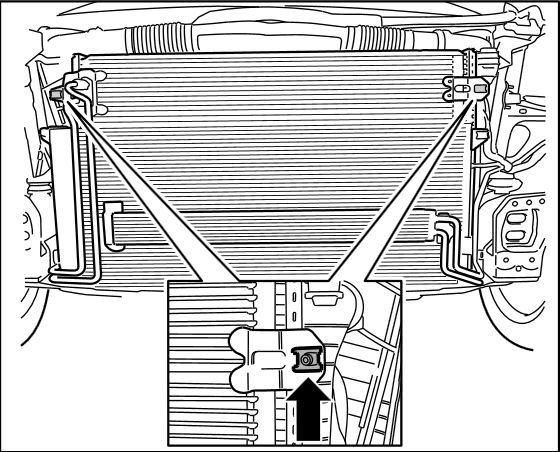

Fig 2: Retaining Clip On ATF Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install retaining clips -arrow - on ATF cooler.

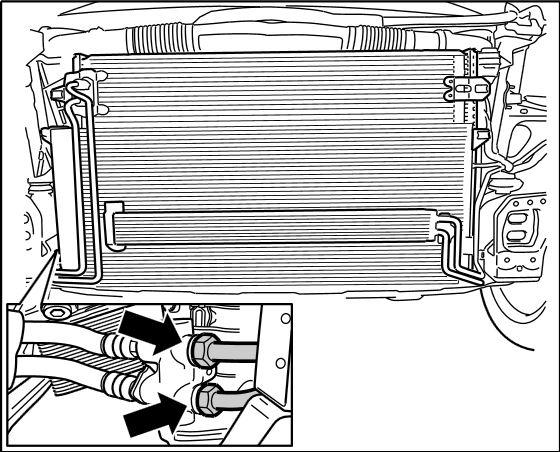

Fig 3: ATF Cooler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw on nuts securing ATF line to thermostat -arrow - → Tightening torque: 30 Nm

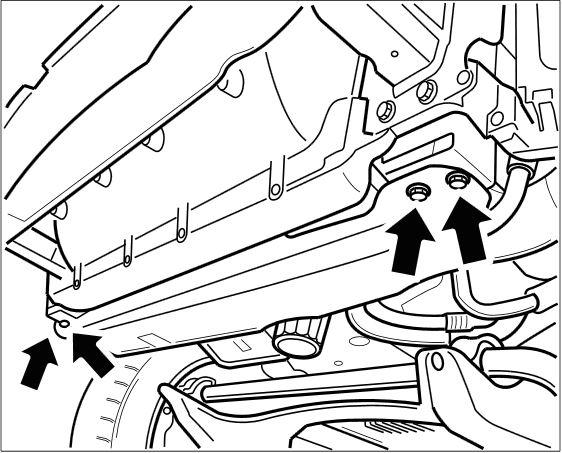

Fig 4: Transverse Strut To Body

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Install the front cross member under the coolers. To do this, tighten the four fastening screws. → Tightening torque: 23 Nm (17 ftlb.)
Unscrew ATF control screw -A - and fill in ATF until a constant discharge is visible at the lifting tube.
Screw in ATF inspection plug with a new sealing ring. → Tightening torque: 70 Nm (52 ftlb.)

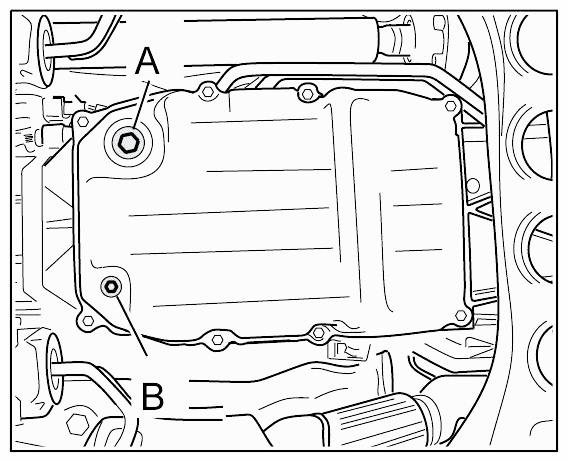

Fig 5: Identifying Oil Inspection Plug And Oil Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
