Installing Wiring Harness In Transmission

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

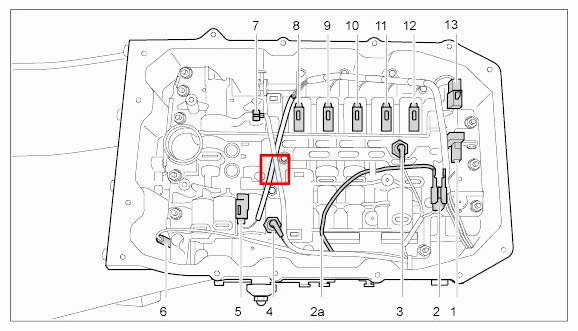

Fig 1: Overview Of Wiring Harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The adaptation values of the Tiptronic control unit must be reset using the Porsche System Tester when replacing/renewing the wire harness . → WM 373019 REMOVING AND INSTALLING TIPTRONIC CONTROL UNIT

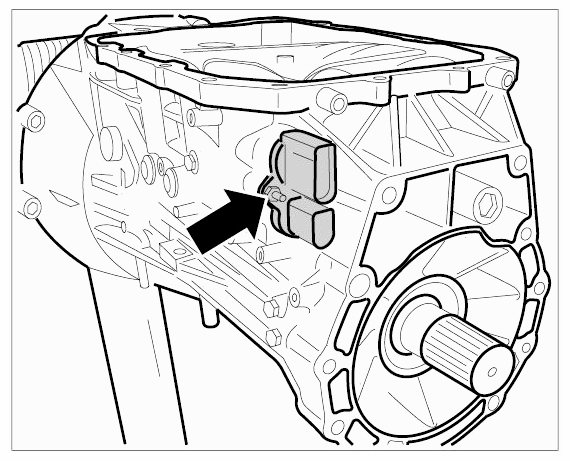

Install output shaft speed inductive pickup. To do this, screw in fastening screw -arrow- . → Tightening torque: 7.5 ftlb.

Fig 2: Locating Cable Plug For Input Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Screws which are tightened with a torque angle must be replaced with new ones.

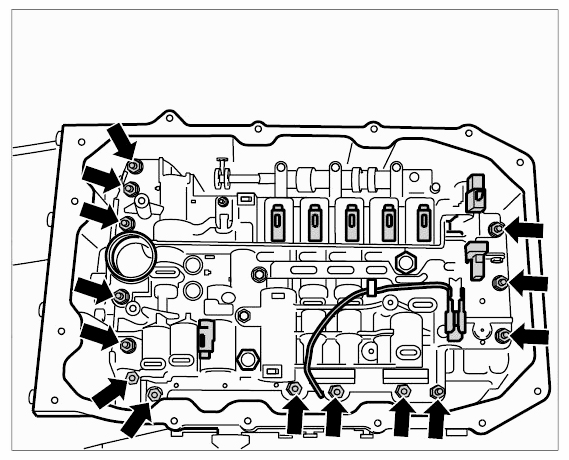

Install electrohydraulic control unit and screw in new fastening screws -arrows- . → Initial tightening: 6 ftlb. → Final tightening: 90 Winkel-Grad

Fig 3: Locating Control Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

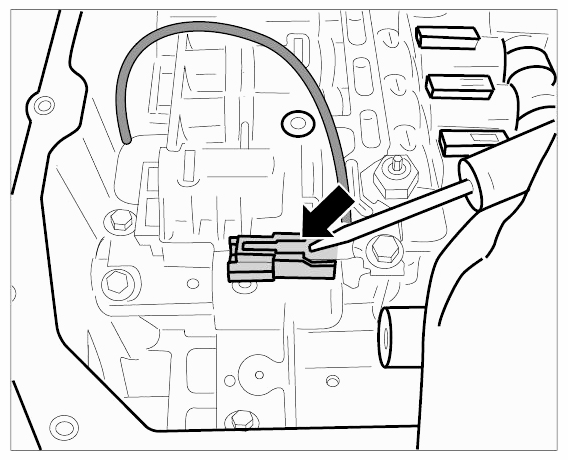

Plug in cable plug -2- for output shaft speed inductive pickup. -arrow-

Fig 4: Removing Cable Plug For Output Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install wire set for sensors through opening in the housing.

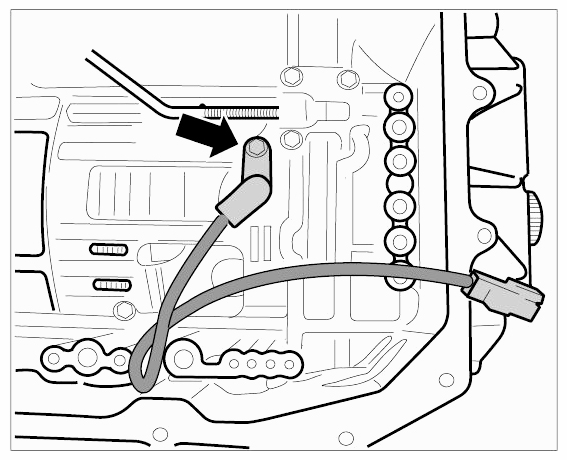

Insert ATF temperature sensor -7- and screw in fastening screw -arrow- . → Tightening torque: 7.5 ftlb.

Fig 5: Locating ATF Temperature Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

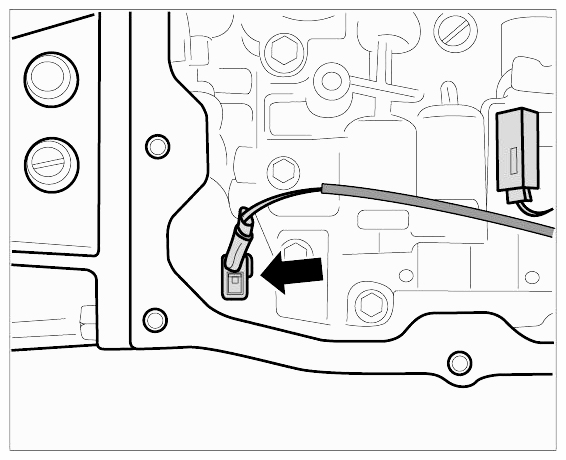

Plug in cable plug for oil pressure switch -3, 4- and inductive pickup for input shaft -6- -arrow- .

Fig 6: Locating Cable Plug For Input Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install wire set for solenoid valves through opening in the housing.
Push in the cable plug for the solenoid valves -1, 5, 8-13- .

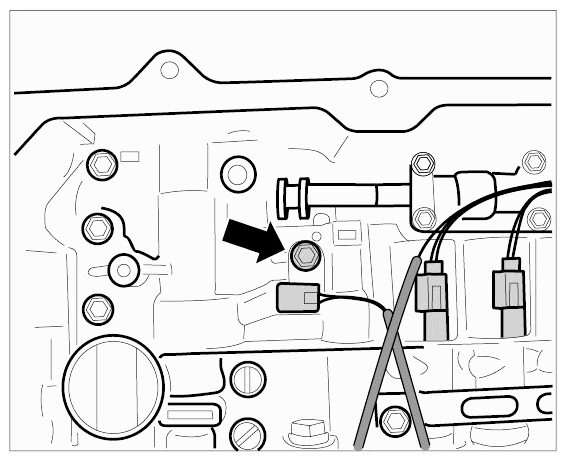

Screw in the fastening screw from both plugs -arrow- . → Tightening torque: 7.5 ftlb.

Fig 7: Locating Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
