WM 408537 Disassembling And Assembling Front Spring Strut (Steel Springs) (All Models): Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|

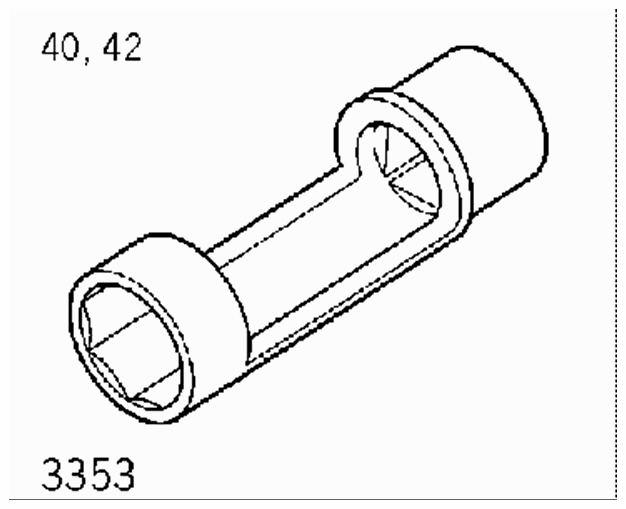

| socket wrench insert | VW tool | 3353 | For loosening lock nuts on the damper. | |

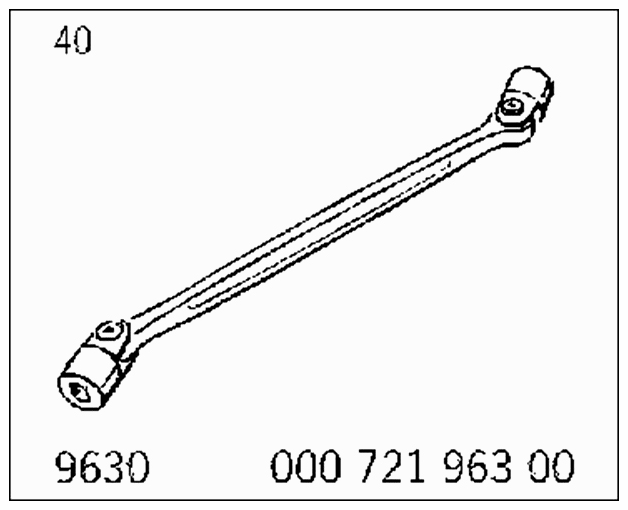

| arm bracket | Special tool | 9630 | For countering the damper piston rods. | |

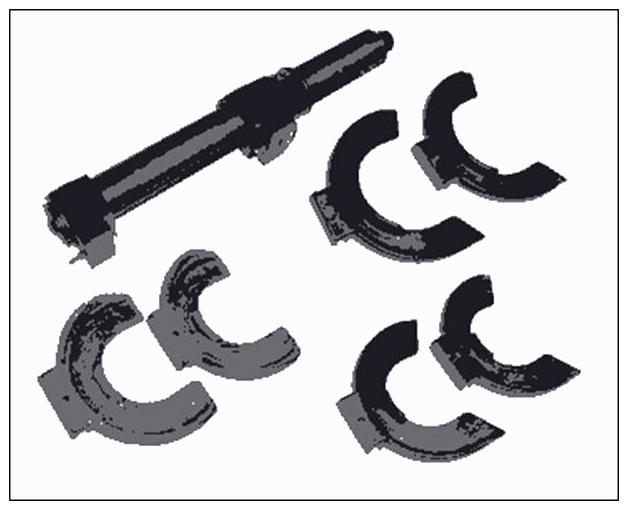

| spring clamp for spring struts | Commercially available tool | Nr.121 | Commercially available. Clamping range of spring holder up to 150 mm spring diameter (size 1A). | |
| double-arm torque wrench 15 - 65 Nm (48 ftlb.) | Commercially available tool | Nr.93 | Commercially available torque wrench for tightening torques of 60 Nm (44 ftlb.) ± 5 Nm (3.5 ftlb.). Tighten |
