WM 405719 Removing And Installing Front Wheel Bearing (All Models): Tools
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
| Designation | Type | Number | Description | |
|---|---|---|---|---|
| puller hook | Special tool | 92291 | ||

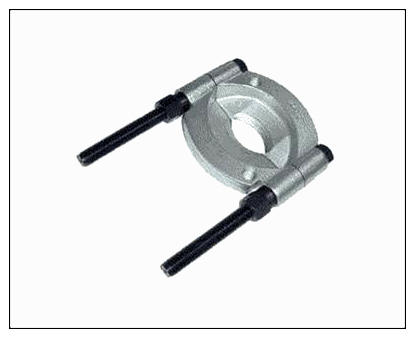

| 12 - 115 mm ø separator | Commercially available tool | Nr.111 | ||

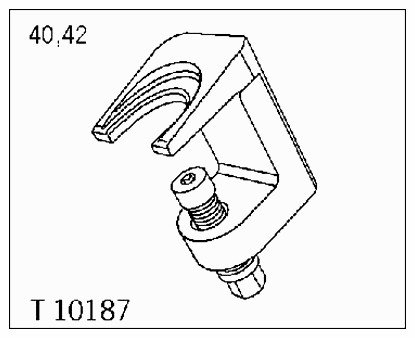

| press-out tool | VW tool | T10187 | ||

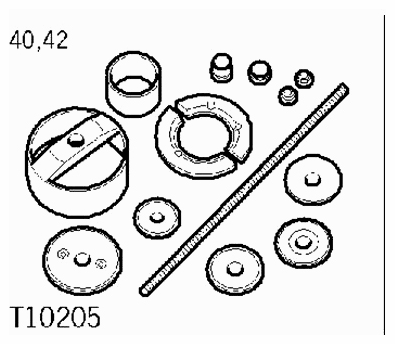

| attachments | VW tool | T10205 | ||
| tubular piston cylinder | Commercially available tool | vas 6178 |

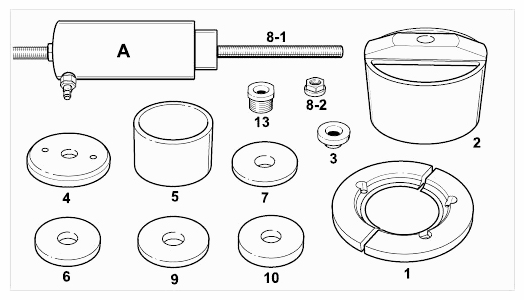

Tool overview for wheel bearing
- -A- - Tubular piston cylinder VAS 6178 (The tubular piston cylinder is used together with the pneumatic hydraulic pump.)
- -1- - T10205/1 grip piece from attachments T10205 (To press the wheel hub out of the wheel bearing.)
- -2- - T10205/2 bell from attachments T10205 (To press out the wheel hub. To pull off the wheel bearing inner race from the wheel hub, use together with separator 12 - 115 mm ø No. 111.)
- -3- - T10205/3 pressure piece from attachments T10205 (To press out the wheel hub.)
- -4- - T10205/4 mounting from attachments T10205 (To press out the wheel bearing.)
- -5- - T10205/5 pipe from attachments T10205 (To press out the wheel bearing.)
- -6- - T10205/6 pressure disc from attachments T10205 (To press out the wheel bearing. And to press in the wheel hub.)
- -7- - T10205/7 pressure piece from attachments T10205 (To press in the wheel bearing.)
- -8-1- - T10205/8-1 threaded rod from attachments T10205 (Used in the tubular piston cylinder -A- .)
- -8-2- - T10205/8-2 threaded nut from attachments T10205 (Used on the threaded rod -8-1- .)
- -9- - T10205/9 pressure piece from attachments T10205 (To press in the wheel bearing.)
- -10- - T10205/10 pressure piece from attachments T10205 (To press in the wheel hub.)
- -13- - T10205/13 push button from attachments T10205 (Used in the tubular piston cylinder -A- .)
