WM 405019 Removing And Installing Front Wheel Bearing Housing (Wheel Carrier) (All Models): Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description

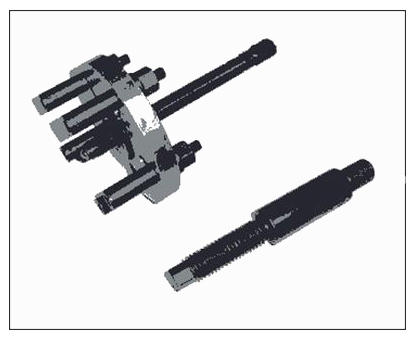

Universal drive shaft/wheel hub puller as of model '86 Commercially available tool Nr.87-1 For pressing the drive shaft out of the wheel hub.
G09418923

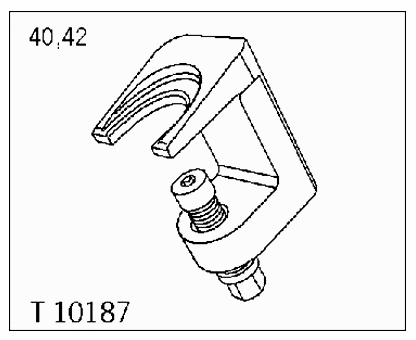

Press-out tool VW tool T10187 For pressing out ball joints.
G09418924

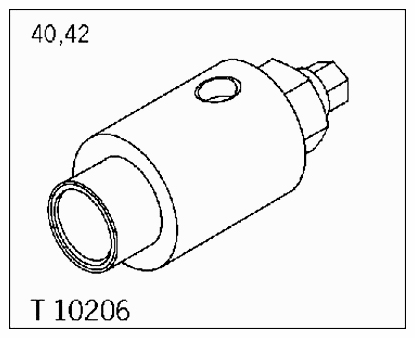

Assembly fixture VW tool T10206 For pulling the drive shafts into the wheel hub.
G09418925

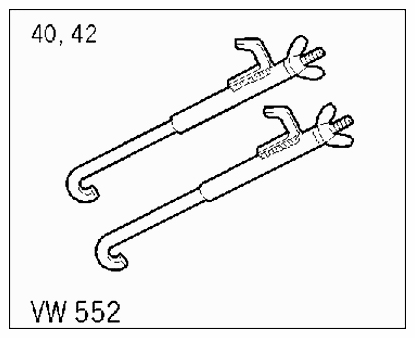

Spring compressor VW tool VW 552 For tensioning the upper trailing arm.
G09418926

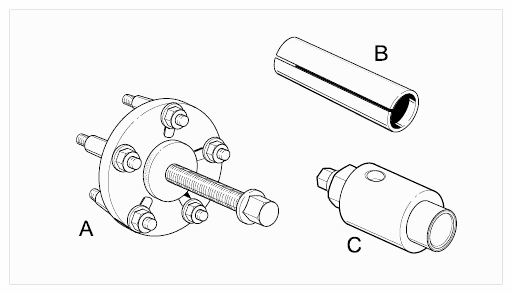

Fig 1: Identifying Universal Drive Shaft/Wheel Hub Puller
G09418927Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A- - Universal drive shaft/wheel hub puller as of model '86 Nr.87-1
  2. -B-  - Protective tube - To protect the drive shaft (shop-made).
  3. -C- - Assembly fixture T10206

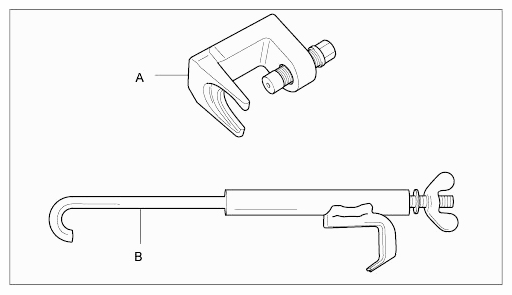

Fig 2: Identifying Tools
G09418928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. -A- - Press-out tool T10187
  2. -B- - Spring compressor VW 552
