Removing Wheel Bearing Housing

Information

• Remove the two wire retainers on the wheel bearing housing (M6 screw). Disconnect speed sensor plug.
• Push protection over input shaft.
• Drive shafts must not be left hanging from the joint stop.

-Radlagergehause-  with wheel hub and brake disc.

Fig 1: Identifying Wheel Bearing Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

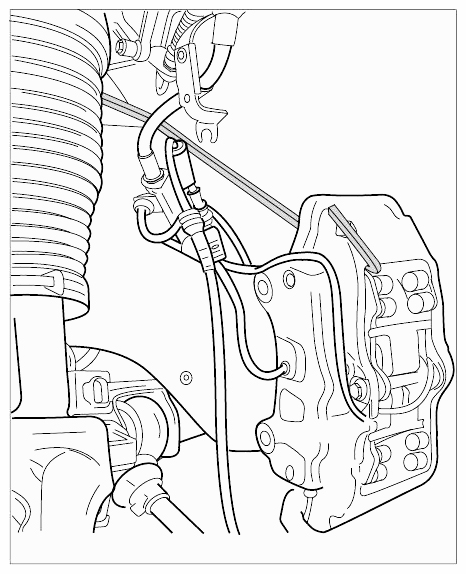

1. Remove the brake calliper → see Fig 2 and the two brake line holders and pull plug off the speed sensor. Secure the brake calliper at a suitable position in the wheel well (do not open the brake system!).
   Fig 2: Identifying Brake Calliper

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

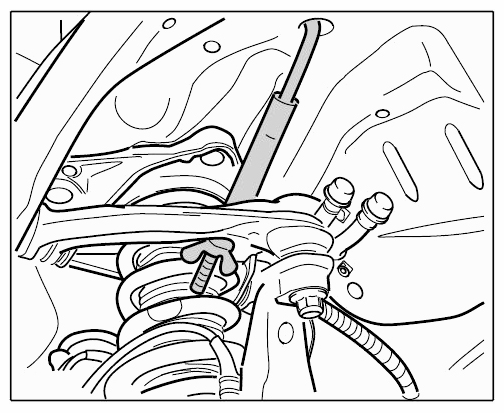

2. Fix -oberen Achlenker-  with spring compressor VW 552  (vehicle in illustration with conventional suspension). This involves tensioning the axle strut slightly because otherwise the top ball joint can be damaged. When doing this, insert turnbuckle into the top opening of wheel housing (double panel) and in the trailing arm.
   Fig 3: Fixing Oberyn Dangling Using Spring Compressor (VW 552)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

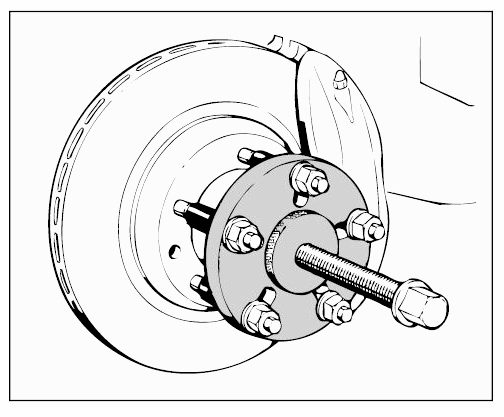

3. Using universal drive shaft/wheel hub puller from model 86 on Nr.87-1,  push (press in) peg of drive shaft approx. 20 mm - 25 mm into the wheel hub -Universal Gelenkwellen/Radnaben Abzieher-  . Make sure that the input shaft does not become kinked between the spring strut prongs. To do this, fasten a suitable wire in the bores of the spring strut prongs.
   Fig 4: Pushing Peg Of Drive Shaft Using Universal Drive Shaft/Wheel Hub Puller

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Loosen the lock nuts from the -unteren Kugelgelenk-  and press off with the press-out tool T10187.  When doing this, leave lock nut flush on ball pin, so as not to damage thread.
   Fig 5: Loosening Lock Nuts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Remove fastening screw for the lower spring strut -arrow-  .

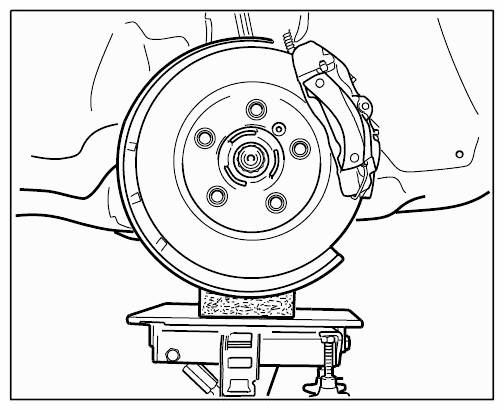

6. Use a suitable -Heber mit Gummiunterlage-  (to prevent slipping) to raise the wheel bearing housing to a position at which the screw can be unscrewed easily.
   Fig 6: Lifting Wheel Bearing Housing

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Press out the tie rod on the wheel bearing housing using the ball joint puller T10187.
8. Press out the top ball joint on the control arm using the ball joint puller T10187  and secure the wheel bearing housing so that it does not fall down (a second worker is required for this!). Pull the wheel bearing housing out of the lower ball joint and remove it.
