Removing Countershaft Cap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

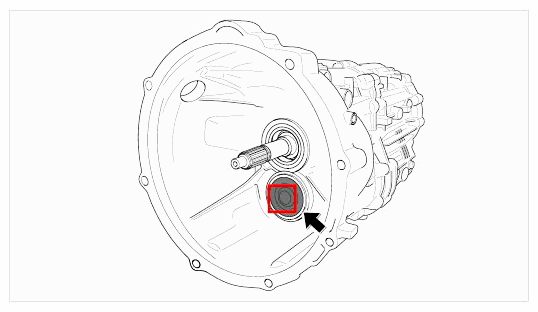

Fig 1: Locating Countershaft Cap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Drive two small holes -figure- - offset by 180 degrees - into the sealing ring.

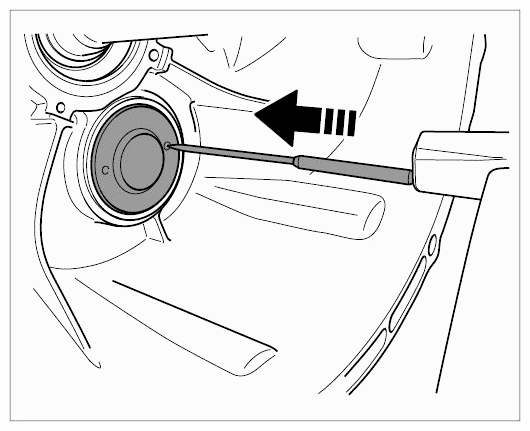

Fig 2: Drilling Hole Into Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw two sheetmetal screws into the holes in the cap.

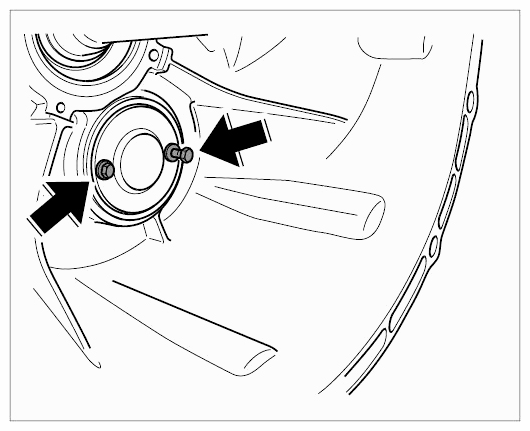

Fig 3: Locating Sheetmetal Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove cap using slide hammer kit nr.168.

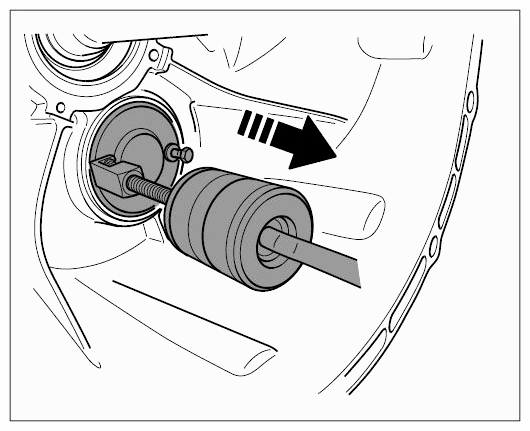

Fig 4: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
