Installing Countershaft Cap

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

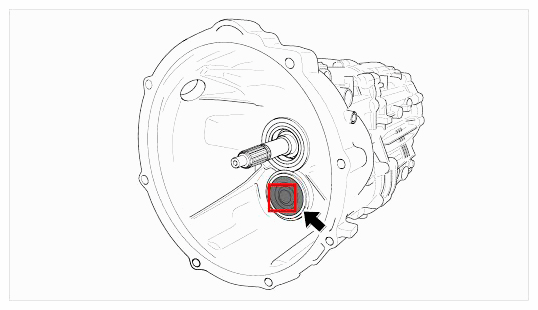

Fig 1: Locating Countershaft Cap
G09410562Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Drive new cap in flush using special tool pressure piece t10180.
