Removing Shift And Selector Cables

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

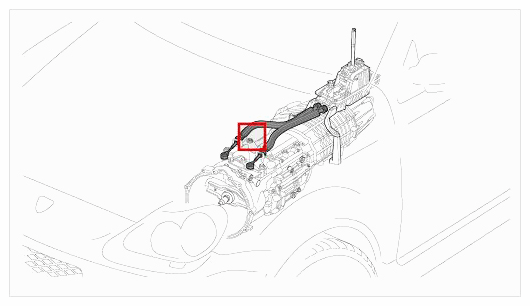

Fig 1: Overview Of Shift And Selector Cables

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

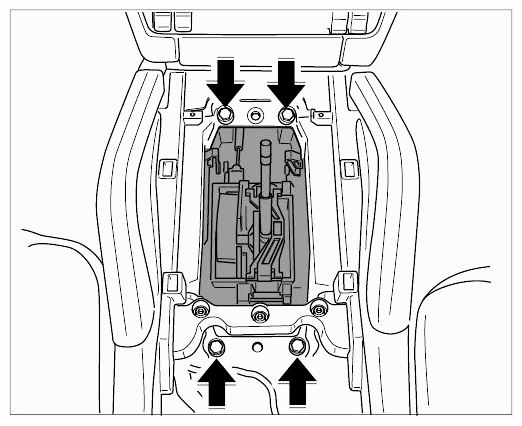

Unscrew threaded joint on bottom section of gearshift bracket -arrows- .

Fig 2: Locating Mounting Screws Of Gearshift Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

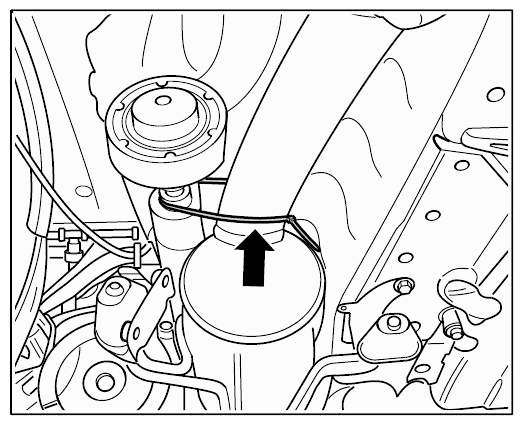

Remove front cardan shaft on the transfer box and tie it up at the side -arrow- .

Fig 3: Attaching Cardan Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lower the transmission:

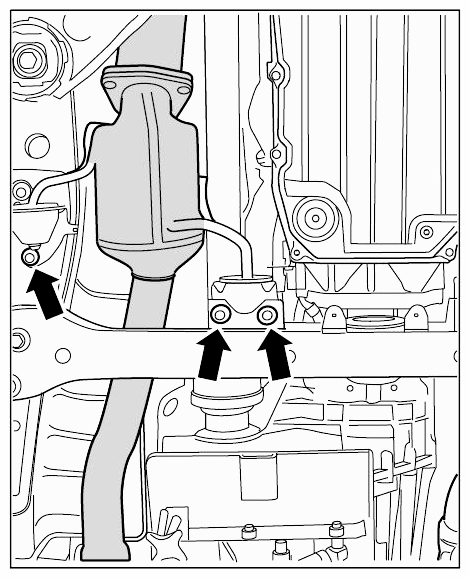

Loosen fastening screws securing exhaust system support -centre arrows- to transmission cross member.

Fig 4: Locating Catalytic Converter Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support transfer box with material 00000.

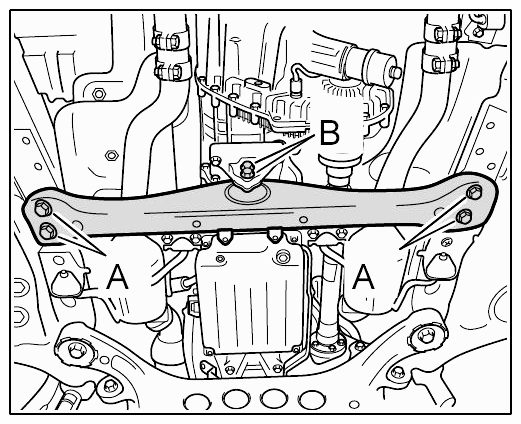

Unscrew four screws -A- on transmission cross member.

Fig 5: Locating Transmission Cross Member Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

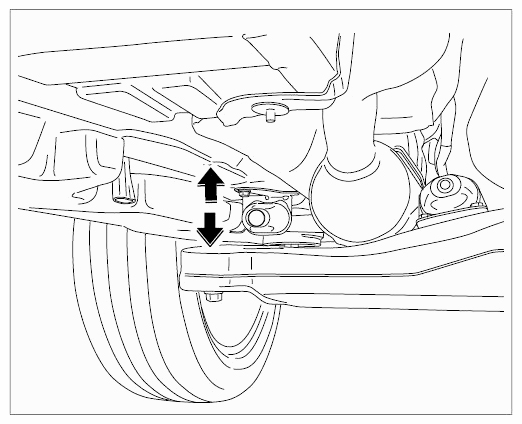

Lower transmission cross member by approx. 55 mm -arrow- .

Fig 6: Identifying Distance From Transmission Cross Member To Body
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

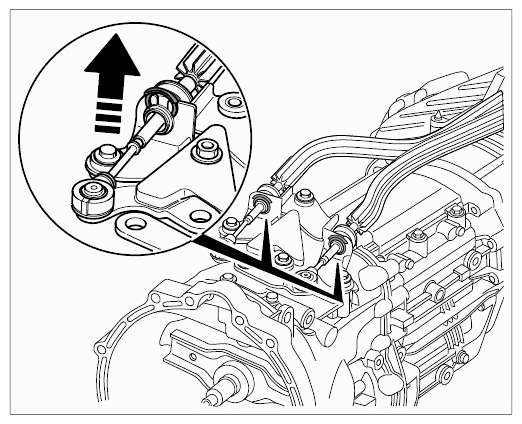

Remove safety clips -arrows- on support.

Fig 7: Removing Safety Clips For Manual Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

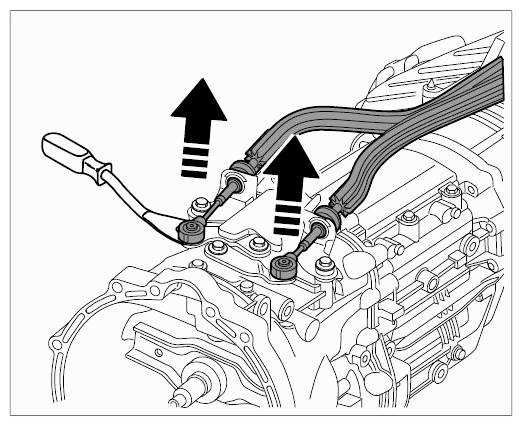

Release shift and selector cable attachment using disassembly tool, universal 21 on gearshift lever -arrows- .

Fig 8: Removing Shift And Selector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Guide the shift and selector cables out of the support.

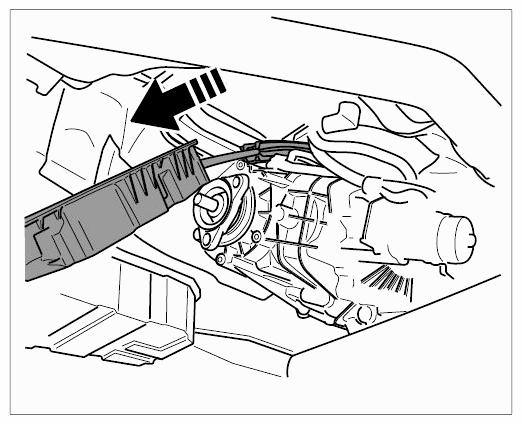

Remove bottom section of gearshift bracket with installed shift and selector cables backwards over the transfer box.

Fig 9: Removing Bottom Section Of Gearshift Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

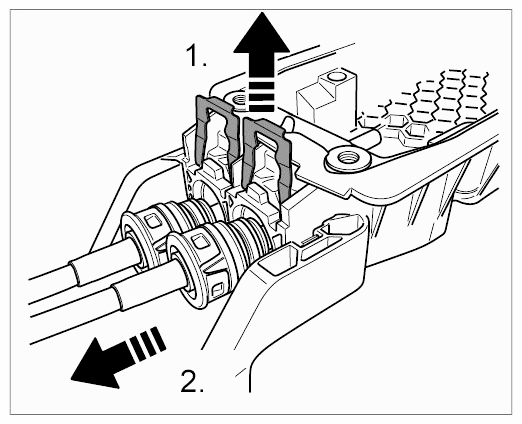

Remove safety clips on bottom section of gearshift bracket -1st arrow- , then remove operating cables -2nd arrow- .
