Installing Shift And Selector Cables

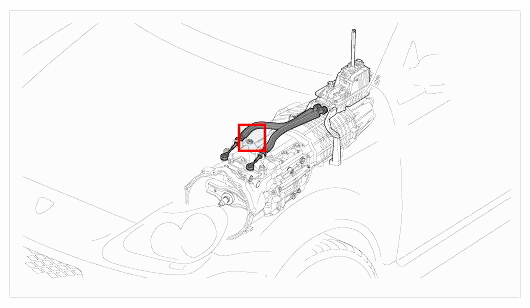

Fig 1: Overview Of Shift And Selector Cable

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

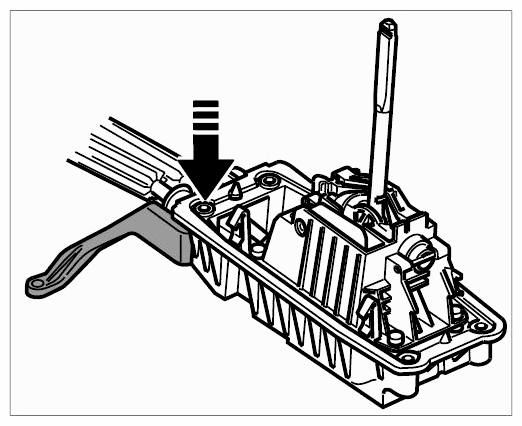

• If present: remove assembly aids from production -arrow- . These were only needed for the first installation in order to align the gearshift bracket.
  Fig 2: Assembling Aid On Bottom Section Of Gearshift Bracket

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

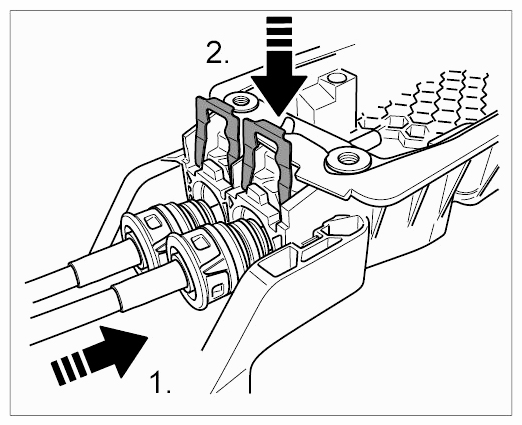

1. Insert shift and selector cables in bottom section of gearshift bracket -1st arrow-  , then fit safety clips -2nd arrow-  .
   Fig 3: Installing Safety Clips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

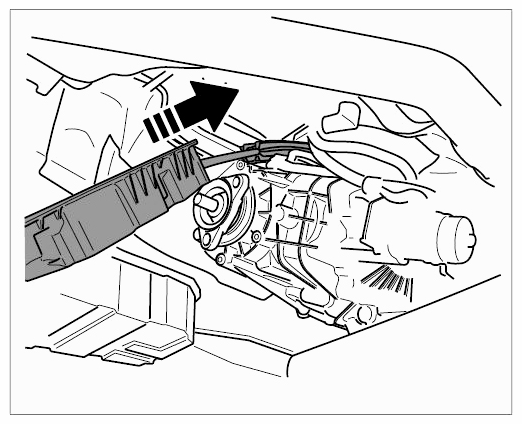

2. Insert bottom section of gearshift bracket with installed shift and selector cables over the transfer box .
   Fig 4: Installing Gearshift Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Guide the shift and selector cables into the support.

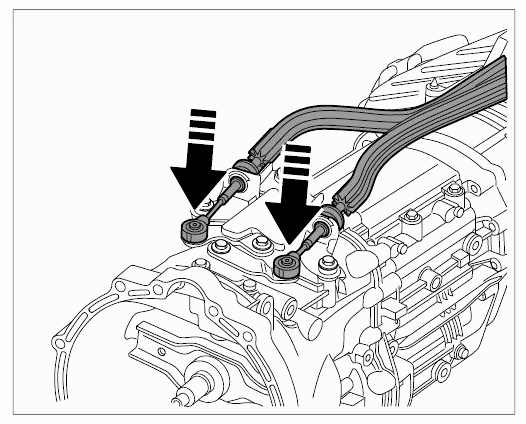

4. Pressing the ends of the shift and selector cables onto the ball head joint on the selector lever -arrows-

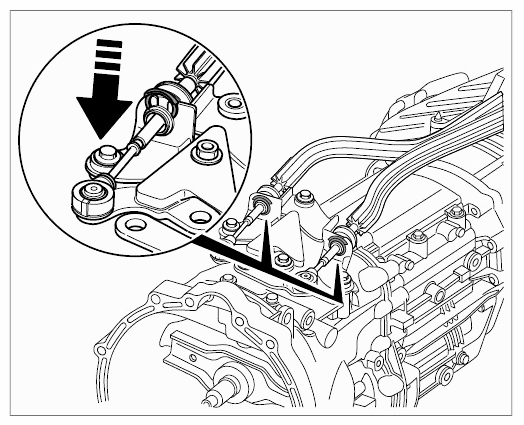

   Fig 5: Pressing Ends Of Shift And Selector Cables Onto Ball Head Joint On Selector Lever

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Press rubber boots into the support and fit safety clips -arrow-  .
   Fig 6: Pressing Rubber Boots Into Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

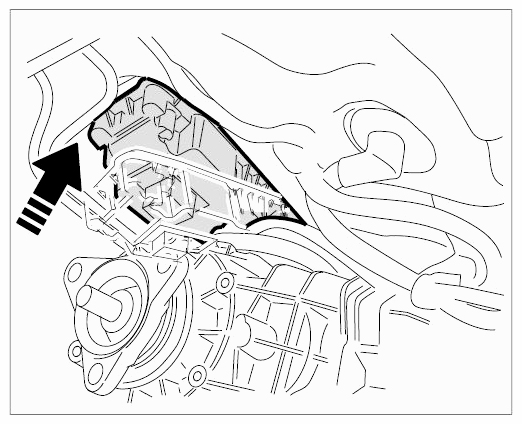

6. Lift up transfer box with cross member. Position bottom section of gearshift bracket in transmission tunnel -arrow-  .
   Fig 7: Positioning Bottom Section Of Gearshift Bracket

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Screws which are tightened with a torque angle must be replaced with new ones.

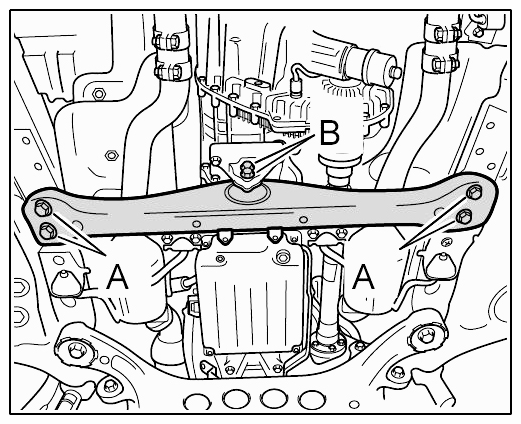

7. Screw in new fastening screws -A-  for transmission cross member.
   Fig 8: Identifying Transmission Cross Member Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
   Transmission cross member	to body	Initial tightening	37 ftlb.
   Transmission cross member	to body	Final tightening	67°

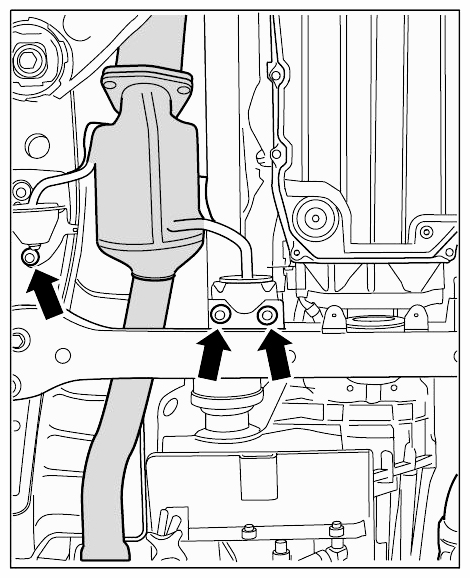

8. Screw in two fastening screws to secure exhaust system support to transmission cross member -centre arrows-  . → Tightening torque: 17 ftlb.
   Fig 9: Locating Catalytic Converter Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • Screws which are tightened with a torque angle must be replaced with new ones.
9. Fix front cardan shaft to transfer box with new screws. → Initial tightening: 22 ftlb.  → Final tightening: 90°

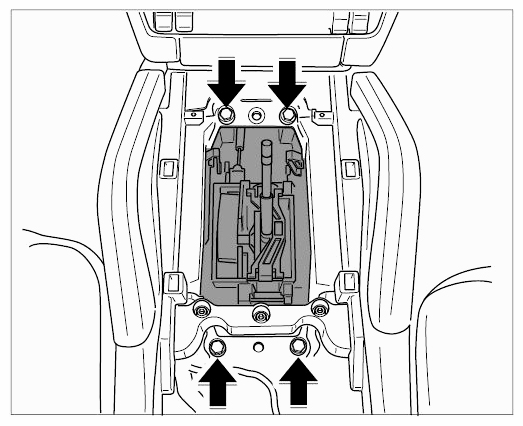

10. Screw in threaded joint on bottom section of gearshift bracket -arrows-  . → Tightening torque: 18 ftlb.
    Fig 10: Locating Mounting Screws Of Gearshift Bracket To Body

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
