Removing Top Section Of Gearshift Bracket

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove centre console trim panel.

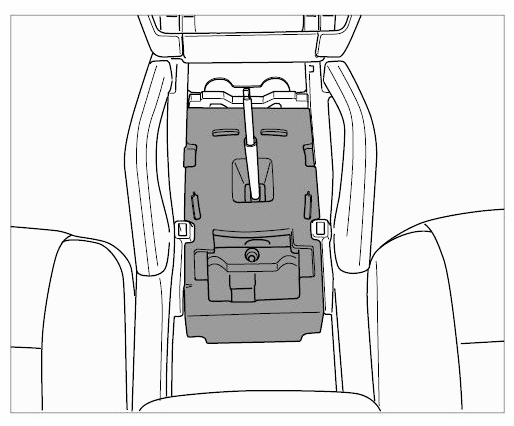

Remove foam mat.

Fig 1: Identifying Foam Mat
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

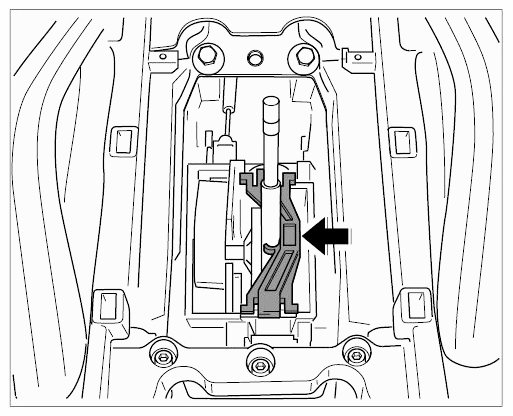

Lock gearshift lever in neutral position using special tool locking bridge 9619 -arrow- .

Fig 2: Locating Gearshift Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

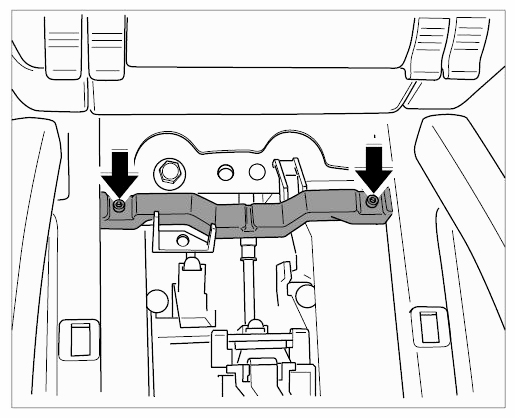

Remove transverse strut on centre console -arrows- .

Fig 3: Locating Transverse Strut For Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Incorrect handling of fastening part
- Tab on fastening part can break off
→ Only bend fastening part as far as the release.

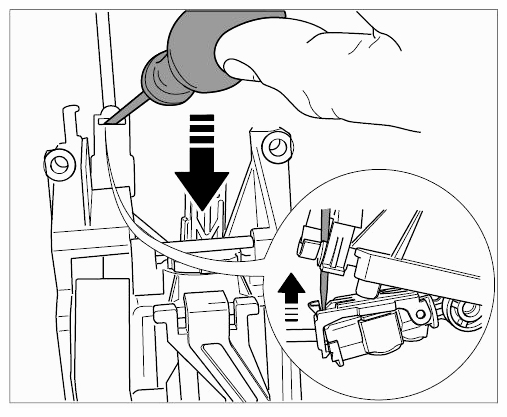

Pull shift and selector cable off gearshift bracket. To do this, release the fastening parts using a screwdriver -arrows- .

Fig 4: Removing Shift And Selector Cables
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove special tool locking bridge 9619.

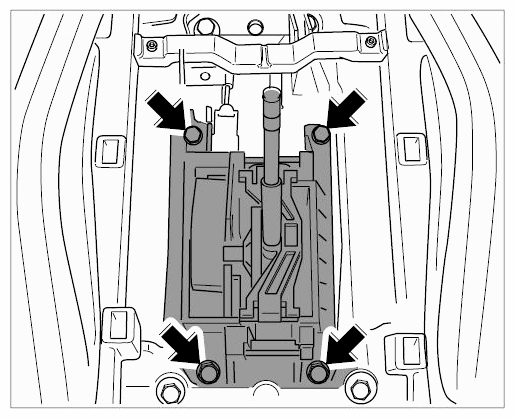

Unscrew fastening screws -arrows- on top section of gearshift bracket.

Fig 5: Locating Gearshift Bracket Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove top section of gearshift bracket.
