Installing Top Section Of Gearshift Bracket

Information

• Transmission must be in neutral position!

1. Install top section of gearshift bracket. Insert shift and selector cable into fastening part -arrows-  .

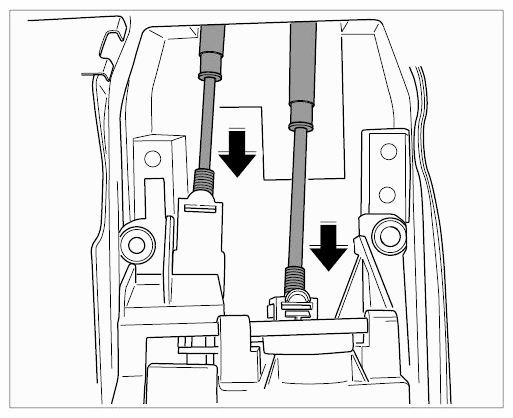

   Fig 1: Inserting Shift And Selector Cables

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in fastening screws -arrows-  on top section of gearshift bracket. → Tightening torque: 6.5 ftlb.

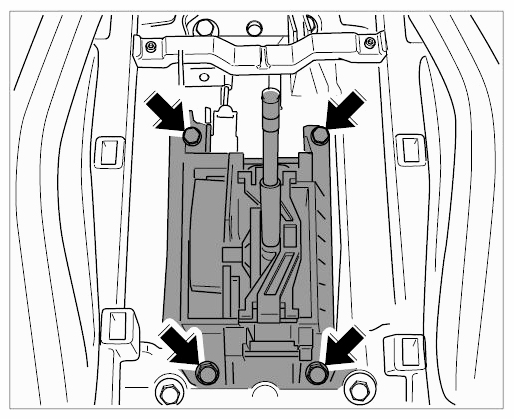

   Fig 2: Locating Gearshift Bracket Mounting Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Lock shift and selector cable by pressing on the fastening parts -arrows-  .

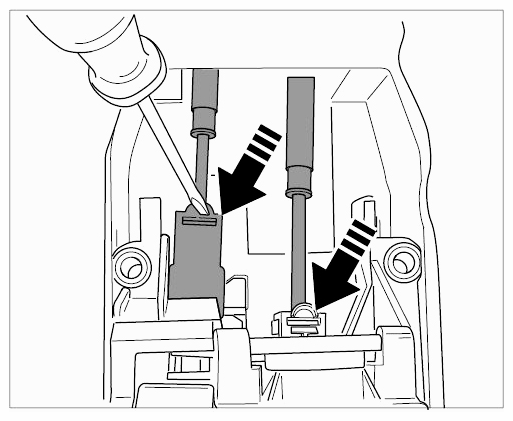

   Fig 3: Locking Shift And Selector Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Function test for shift mechanism:
   • Position of gearshift lever?
   • Possible to shift through all gears, including reverse gear?
5. Install the transverse strut of the centre console -arrows-  .

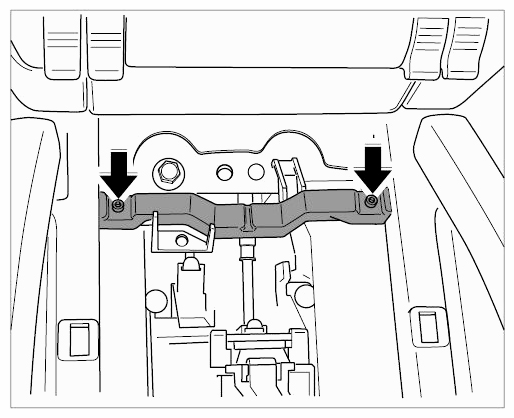

   Fig 4: Locating Transverse Strut For Centre Console

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Insert foam mat. .

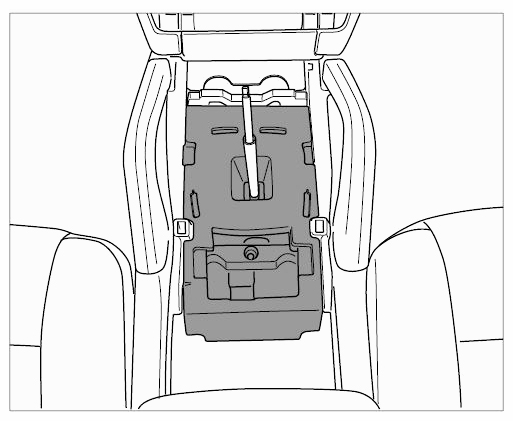

   Fig 5: Identifying Foam Mat

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Insert centre console trim panel.
