Checking Transmission Oil
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
Information
- Secure vehicle to prevent it rolling away.
- To check transmission oil the vehicle must be horizontal.

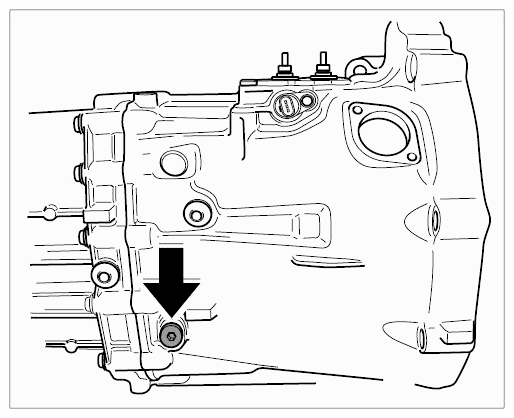

- Unscrew oil inspection plug -arrow- .
- The oil level is correct if the oil reaches the lower edge of the inspection window.
If this is not the case, add more transmission oil. → Topping Up Transmission Oil
- Screw in oil inspection plug -arrow- with a new sealing ring. → Tightening torque: 35 Nm
