Reworking ATF Pan

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Modified ATF filling capacities in the transmission in combination with new control units.
Observe → "Technische Information 01/04 Gruppe 3" and numbers on transmission and control unit.

Check and if necessary, top up the ATF. → 370235 CHECKING AND TOPPING UP ATF

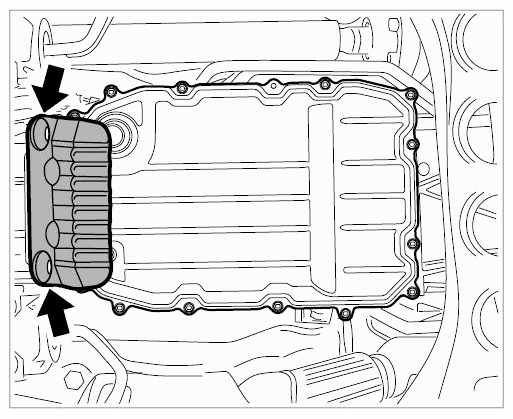

Install shield on ATF pan. To do this, tighten the two fastening screws -arrows- . → Tightening torque: 10 Nm (7.5 ft lbs.)

Fig 1: Identifying Shield On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit engine guard. → Installing engine guard
