Removing ATF Pan

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

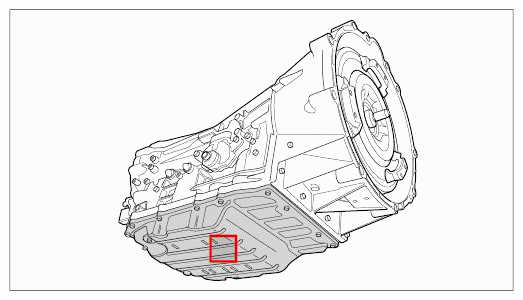

Fig 1: Overview Of ATF Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove cover of ATF pan. To do this, loosen the two fastening screws -arrows- .

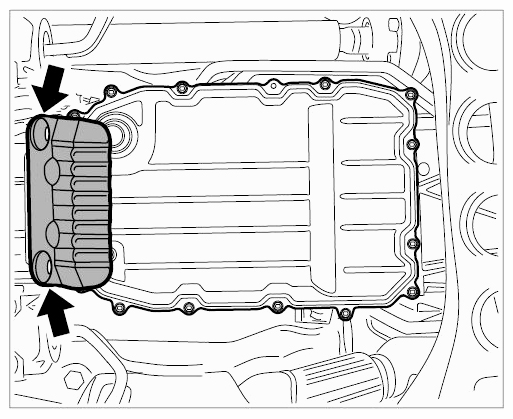

Fig 2: Locating Shield On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place collection pan under the transmission. Unscrew oil drain plug -1- and drain ATF.

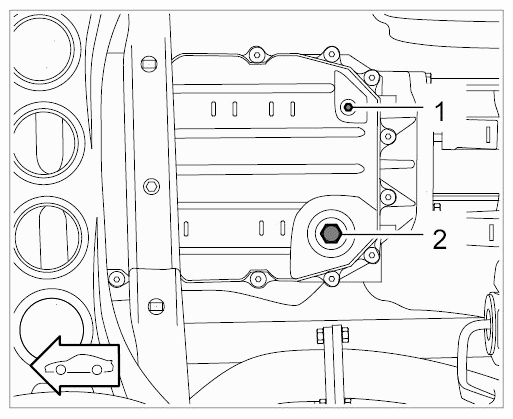

Fig 3: Identifying Oil Drain Plug And Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -1- with a new sealing ring. → Tightening torque: 28 Nm (21 ft lbs.)
Unscrew screws -arrows- on the ATF pan and remove pan.

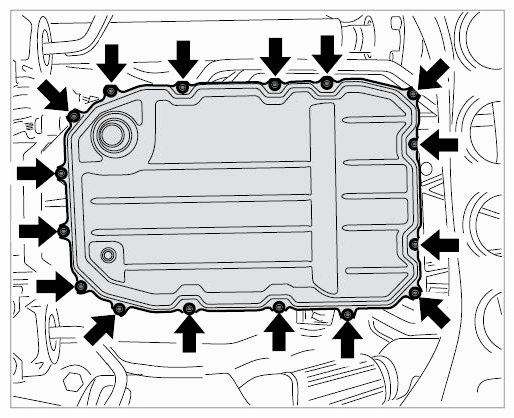

Fig 4: Locating ATF Pan Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
