Installing ATF Pan

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

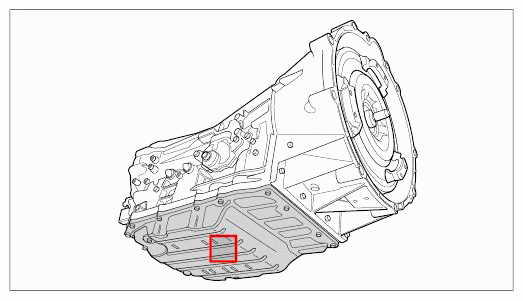

Fig 1: Overview Of ATF Pan

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Make sure that the gasket has been positioned correctly on the bulb of the oil pan edge .

Place new gasket on the ATF pan.
Check position of the magnets -arrows- in the oil pan.

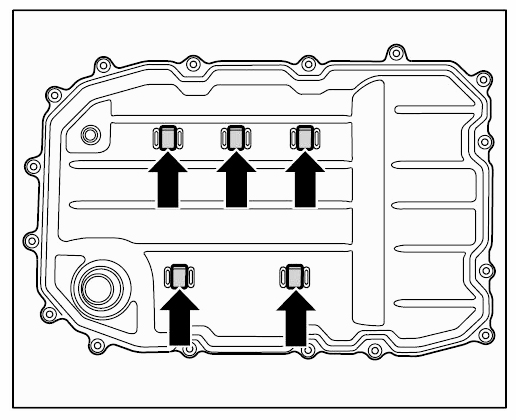

Fig 2: Locating Magnets On ATF Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert ATF pan and screw in screws -arrows- . → Tightening torque: 6 Nm (4.5 ft lbs.)

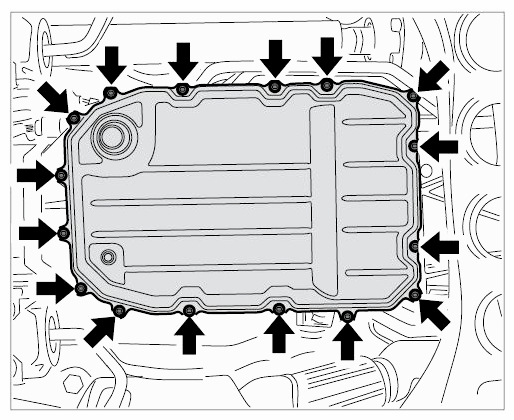

Fig 3: Locating ATF Pan Mounting Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil inspection plug -2- and fill in ATF until a constant discharge is visible.

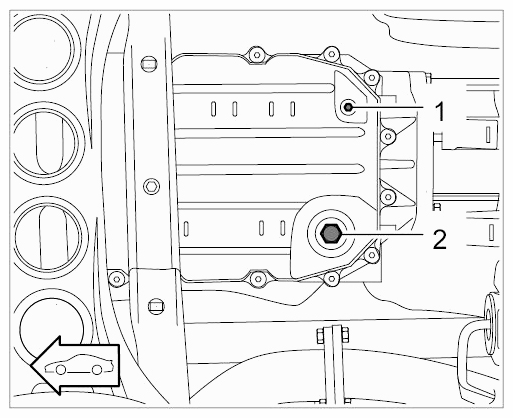

Fig 4: Identifying Oil Drain Plug And Oil Inspection Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil inspection plug -2- again with a new sealing ring. → Tightening torque: 70 Nm (52 ft lbs.)
