Subsequent Work For Transmission Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always observe the exact work sequence when installing/removing the transmission cross member.

Information

Screws which are tightened with a torque angle must be replaced with new ones.

Install transmission cross member.
Screw in two transmission cross member screws -B- on the transfer gear holder. → Initial tightening: 50 Nm (37 ft lbs.) → Final tightening: 90°

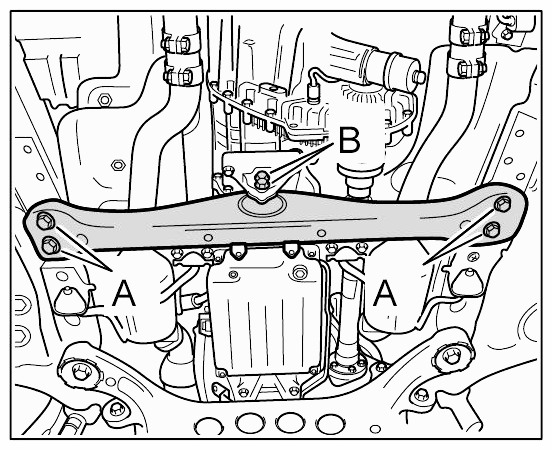

Fig 1: Identifying Transmission Cross Member
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws for securing transmission cross member to body -A- . → Initial tightening: 50 Nm (37 ft lbs.) → Final tightening: 90°
