Removing Transmission Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Mark the centre of the rubber mounting on the transmission cross member with a coloured marker -arrow-  . The tool T10214/3 Nr.1  may be used here as an aid.

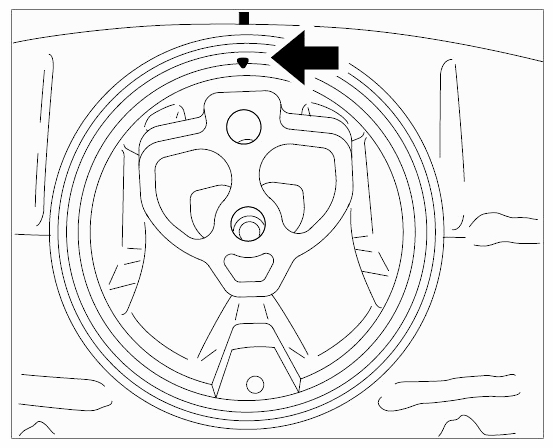

    Fig 1: Locating Mark On Transmission Mount
    G09410710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press out the old rubber mounting on the workshop press using special tool T10214/3 and T10214/4 Nr.1.  To do this, place the transmission cross member on tool T10214/1. Tool T10214/3  must be centred on the mount, do not screw in, and press out transmission mount.

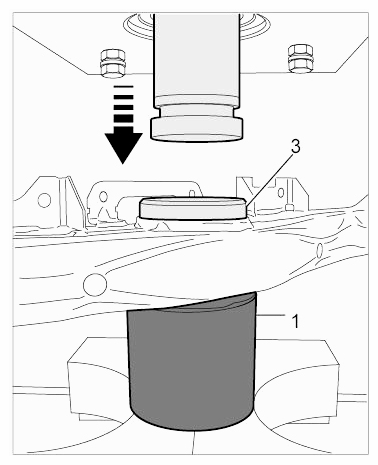

    Fig 2: Pressing Out Transmission Mount
    G09410711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
