Preliminary Work For Transmission Mount

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Always observe the exact work sequence when installing/removing the transmission cross member.

  1. Remove transmission cross member.
  2. Support transmission with transmission jack and secure with retaining band.
  3. Unscrew bolts on body -A-  .

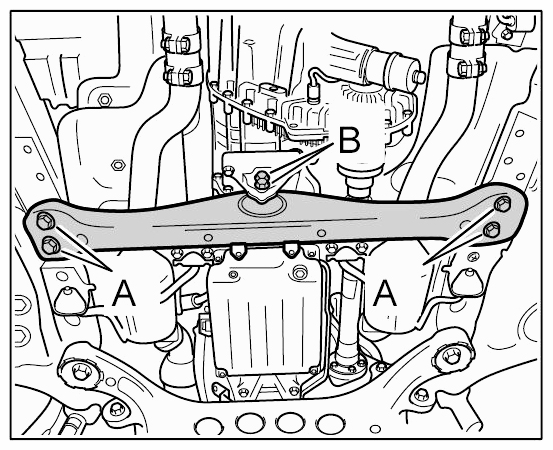

    Fig 1: Identifying Transmission Cross Member
    G09410709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Unscrew two transmission cross member screws -B-  on transfer gear holder.
  5. Remove transmission cross member.
