Adjusting Multi-Functional Switch

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

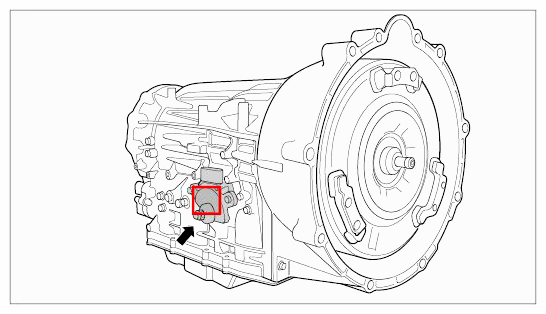

Fig 1: Overview Of Multi-Functional Switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move selector lever to position N.
Remove heat shield on the transmission. To do this, unscrew three fastening screws -arrow- .

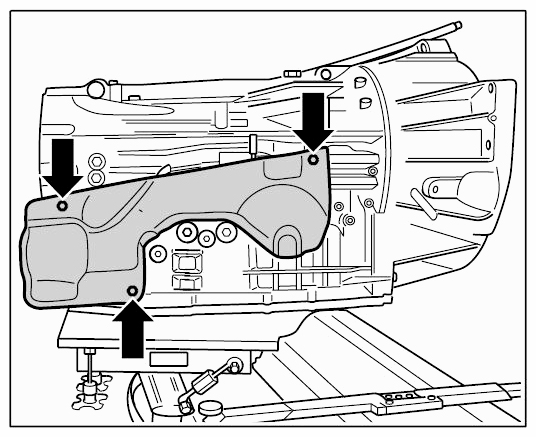

Fig 2: Locating Heat Shield On Right Side Of Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off cable on multi-functional switch.
Remove cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch.

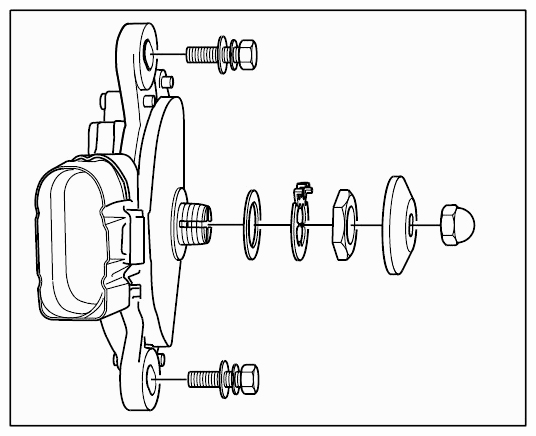

Fig 3: Identifying Multi-Functional Switch Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen fastening screws -arrow- .

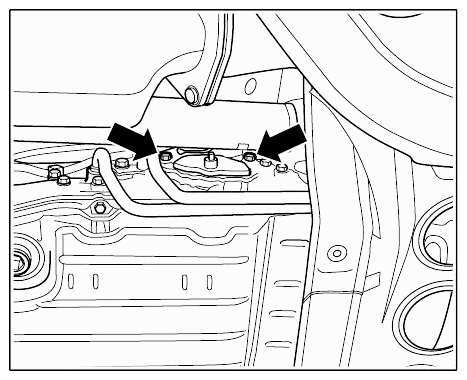

Fig 4: Locating Fastening Screws On Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position special tool adjusting tool T10173 on the shaft and fix to the shaft with screws -arrow- .

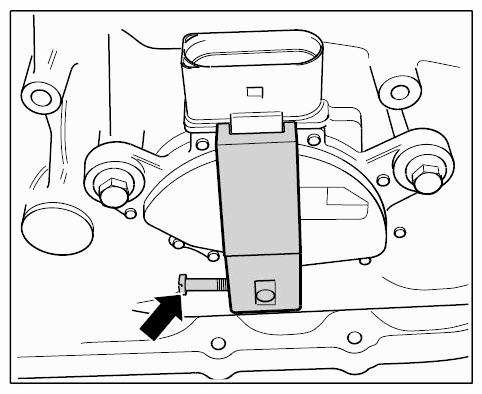

Fig 5: Locating Adjusting Tool On Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -arrow- and remove special tool. → Tightening torque: 5 Nm (3.5 ft lbs.)

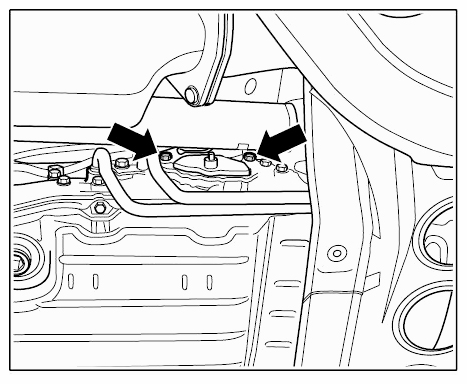

Fig 6: Locating Fastening Screws On Multi-Functional Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install cap nut, cap, nut with tab washer and rubber washer on the multi-functional switch. → Tightening torque: 7 Nm (5 ft lbs.) → Tightening torque: 15 Nm (11 ft lbs.)

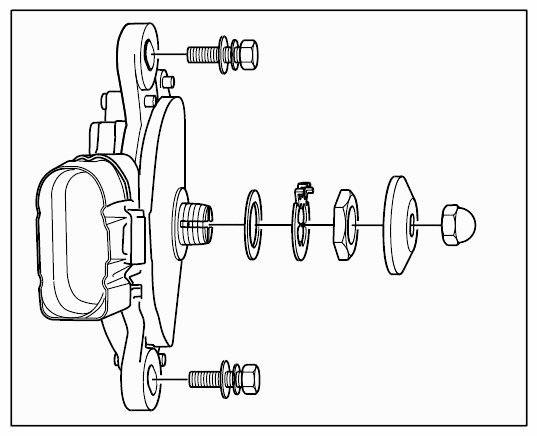

Fig 7: Identifying Multi-Functional Switch Assembly
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect compact connector to multi-functional switch.
Install heat shield on transmission. To do this, screw in three fastening screws -arrow- . → Tightening torque: 10 Nm (7.5 ft lbs.)

Fig 8: Locating Heat Shield On Right Side Of Transmission Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
