Removing Selector Lever Cable

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When a new selector lever cable is used, this should be connected directly to the old cable when it is removed. This ensures that it is routed correctly.

Remove heat shield on the transmission. To do this, unscrew three fastening screws -arrow- .

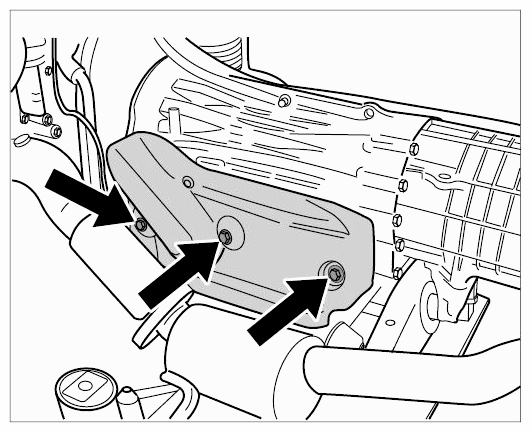

Fig 1: Locating Heat Shield On Transmission Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove tab washer -A- on the cable.

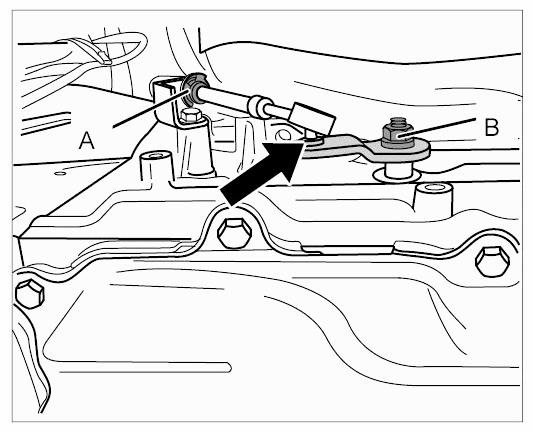

Fig 2: Locating Selector Lever Cable Connection To Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew selector lever cable from the ball joint with universal disassembly tool Nr.21.

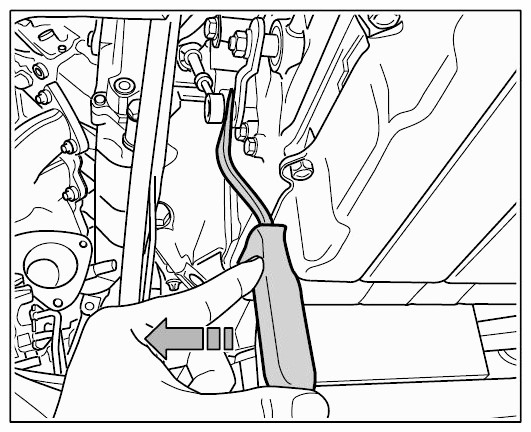

Fig 3: Removing Selector Lever Cable On Transmission
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull selector lever cable up and out through the lower part of the selector frame.
