Removing And Installing Cable Adjustment

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

When a new selector support is used, the cable adjustment of the selector cable must be modified.

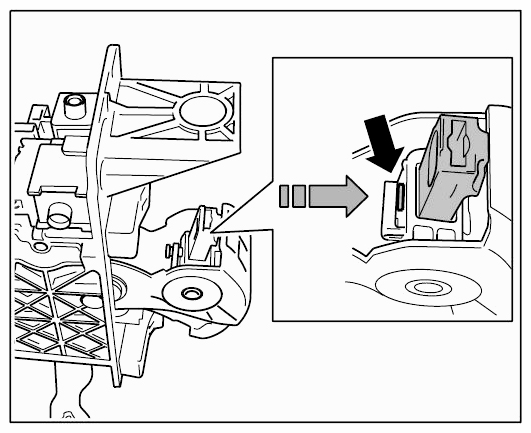

Remove pins -direction of arrow- and take out cable adjustment.

Fig 1: Removing Cable Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

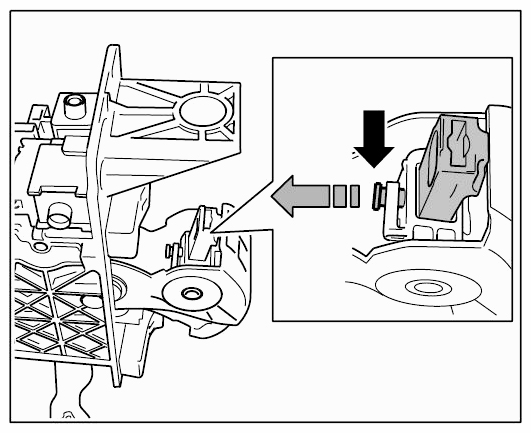

Insert cable adjustment on the new selector support and install pins -direction of arrow- .

Fig 2: Inserting Cable Adjustment On Selector Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

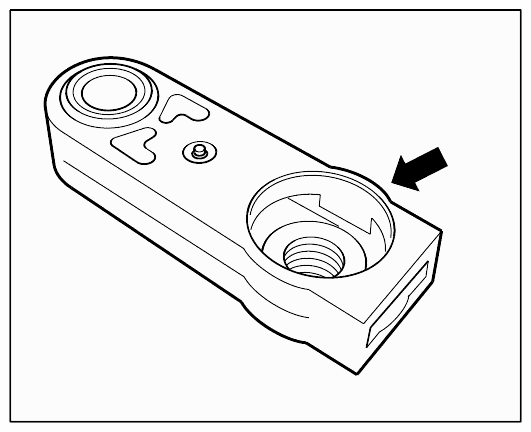

When doing so, ensure that the opening for the adjusting screw -arrow- is turned upwards.

Fig 3: Locating Cable Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
