Disassembling Cover For Selector Lever

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

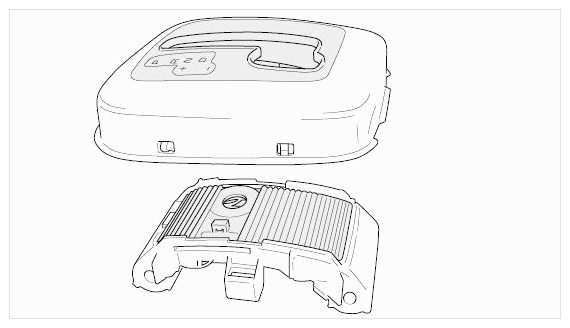

Fig 1: Overview Of Cover For Selector Lever

G09410632

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Use a clean and soft working surface to disassemble the cover for the selector lever.

Information

Only press the retaining lugs until the shade loosens from the upper part.
Otherwise, the retaining lugs can break.

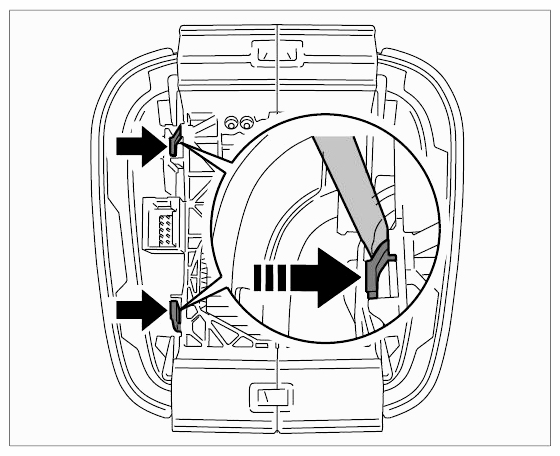

Release the lugs -arrows- on one side on the underside of the cover for the selector lever.

Fig 2: Removing Lugs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

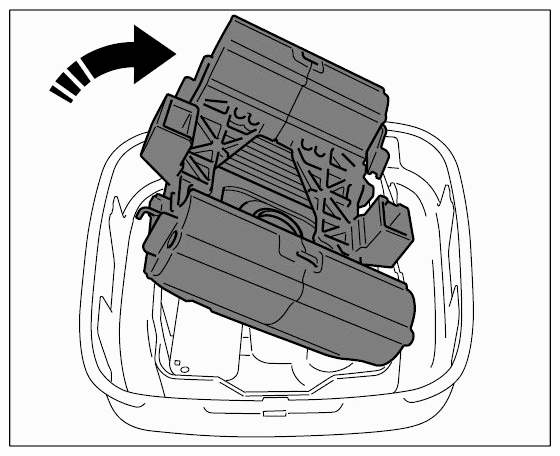

Tip shade up on this side. .

Fig 3: Removing Shade
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
