Assembling Cover For Selector Lever

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Use a clean and soft working surface to disassemble the cover for the selector lever.

Before assembly, the printed circuit board is to be inserted correctly -arrows- .

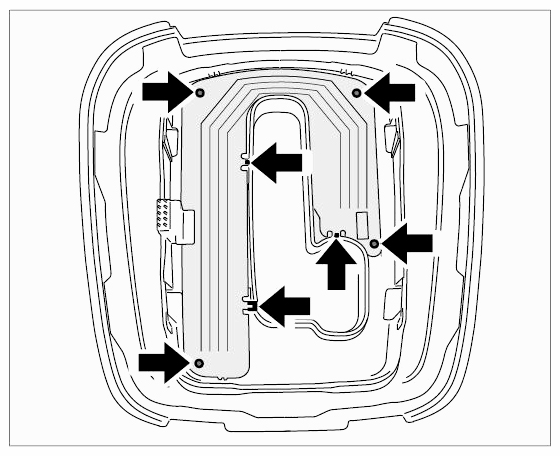

Fig 1: Locating Printed Circuit Board Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
The shade must be inserted in the correct position, sliding contact -1- on grinding track -2- .

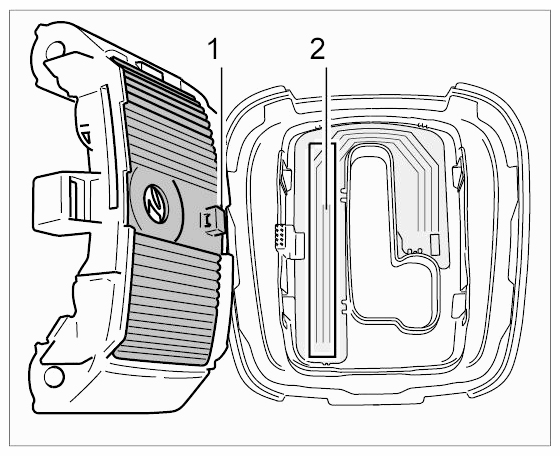

Fig 2: Identifying Position Of Upper Part To Lower Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fasten shade on the one side with the retaining lugs -arrows- .

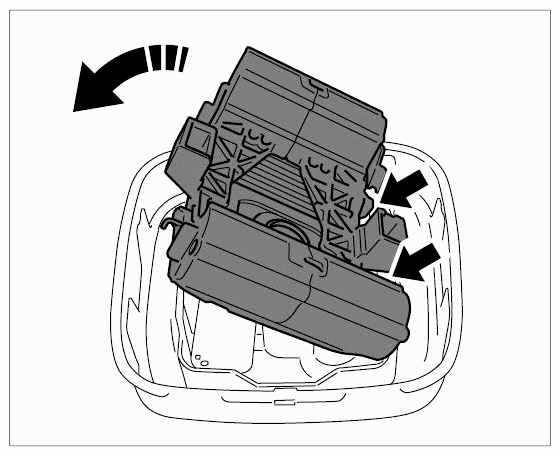

Fig 3: Inserting Shade
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push shade onto the upper part, fastening the shade until it locks with an audible click.

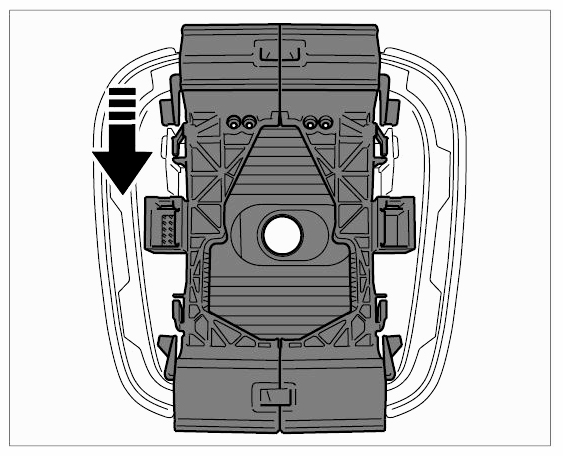

Fig 4: Pushing Shade Onto Upper Part
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
