Removing Sealing Ring For Front Transfer Box Output

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

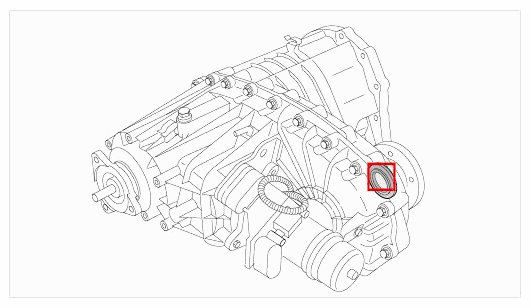

Fig 1: Overview Of Sealing Ring For Front Transfer Box Output

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew collar nut of output flange with special tool socket t10204. To do this, block flange with special tool arm bracket 3435.

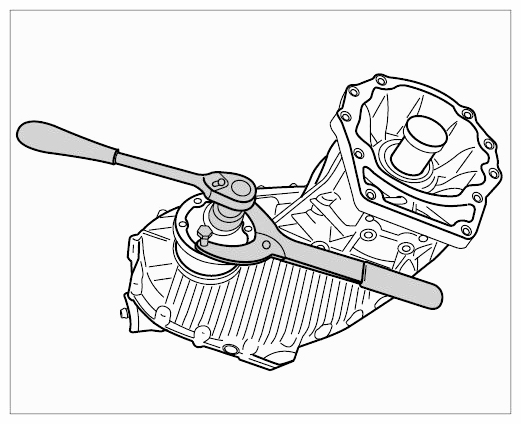

Fig 2: Unscrewing Collar Nut Of Output Flange Using Special Tool Socket (T10204)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove round seal on output flange.

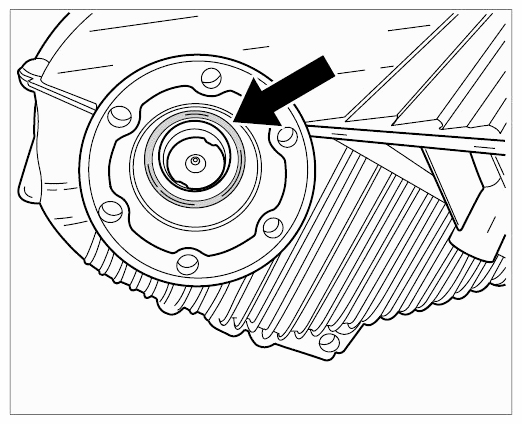

Fig 3: Locating Output Flange Round Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove output flange with shop made tool and striker vw 771/1.

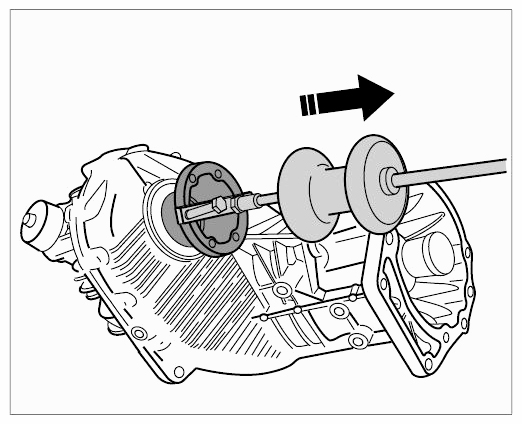

Fig 4: Removing Output Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove sealing ring with special tool hook vw 681.

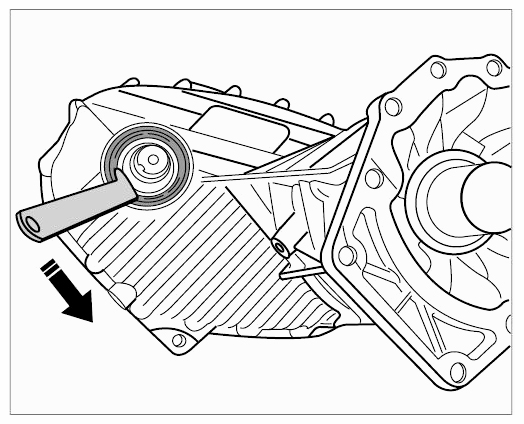

Fig 5: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
