Changing Oil For Transfer Box

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Slide oil collecting container under the vehicle.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.

→ Wear personal protective gear.
Unscrew oil drain plug -B- and drain the oil.

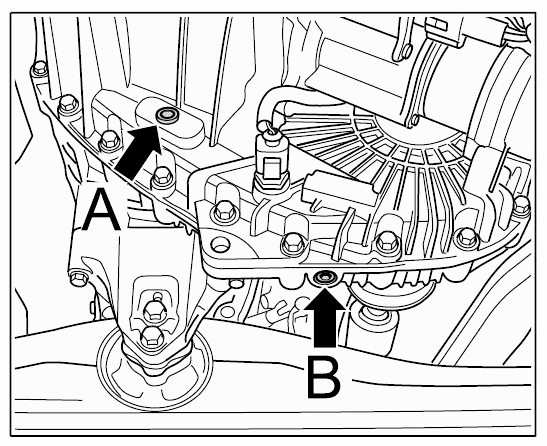

Fig 1: Locating Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in oil drain plug -B- with a new sealing ring. → Tightening torque: 20 Nm
Unscrew oil inspection plug -A- .

Fig 2: Locating Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Vehicle must be horizontal in order to fill the transfer box.

Information

Use only oil approved by Porsche.
Fill with oil to the lower edge of the inspection plug opening -A- using the ATF filling device for filling transmission 161. Raise filling device.
Screw in oil inspection plug -A- with a new sealing ring. → Tightening torque: 20 Nm

Fig 3: Locating Oil Inspection And Drain Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
