Removing Sealing Ring For Cardan Flange

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

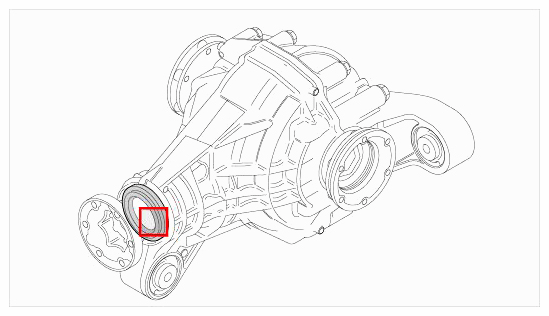

Fig 1: Overview Of Cardan Flange Sealing Ring

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

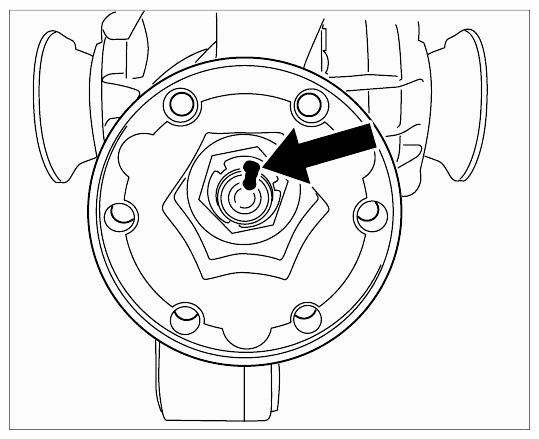

Mark position of nut on drive flange -arrow- at shaft.

Fig 2: Locating Marking Nut On Drive Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

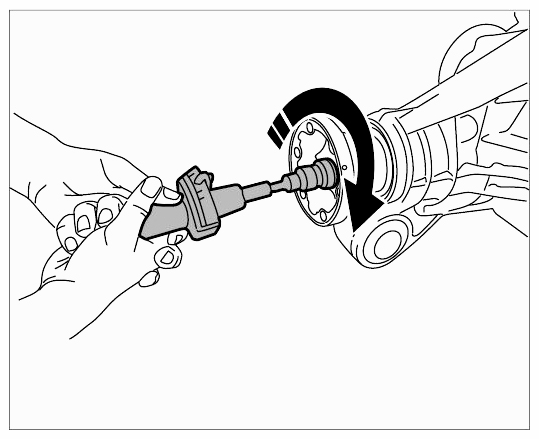

Check rolling moment of rear final drive with special tool torque screwdriver for measuring friction moment Nr.89 and note value.

Fig 3: Checking Rear Final Drive Rolling Moment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- A second fitter is required for loosening/tightening the flange

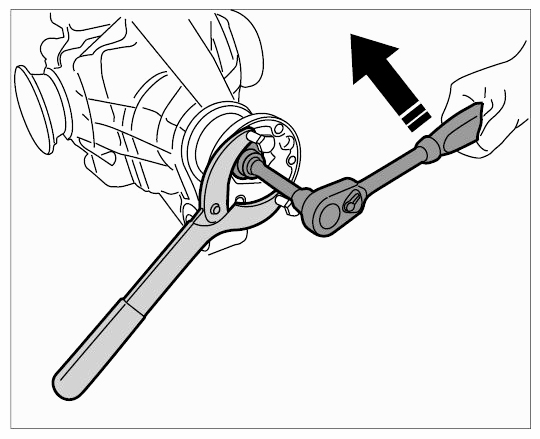

Unscrew nut on drive flange. To do this, block flange with special tool arm bracket 3435.

Fig 4: Loosening Drive Flange Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

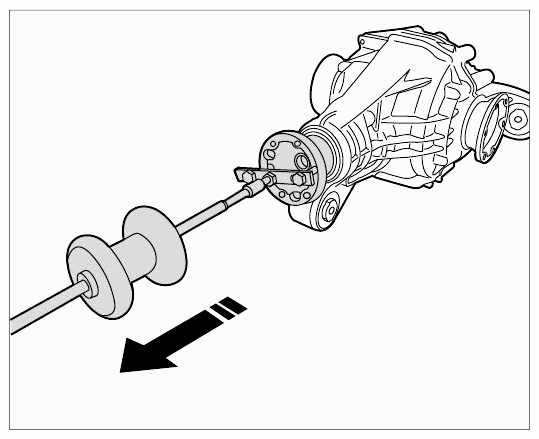

Remove drive flange with special tool shop made tool 00000 and striker VW 771/1.

Fig 5: Removing Drive Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

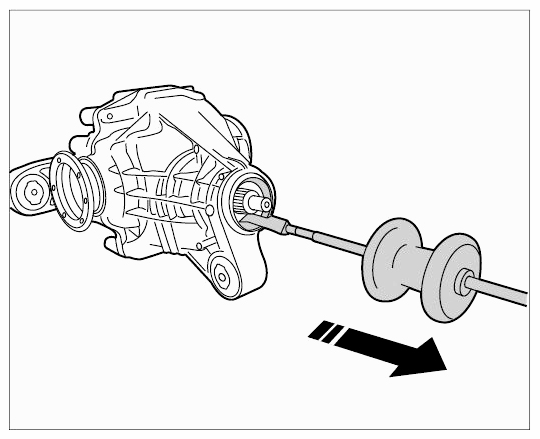

Remove sealing ring with special tool striker VW 771/1 and extraction tool VW 771/37.

Fig 6: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
