Removing Servo Motor On Transfer Gear

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

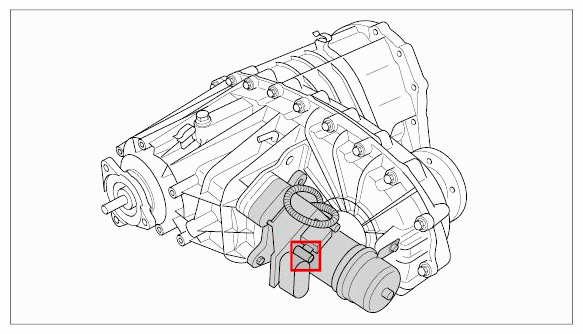

Fig 1: Overview Of Servo Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Before starting to work on the servo motor for the transfer gear, engage the Low Range off-road driving programme.
Remove heat protection from cable plugs on servo motor.

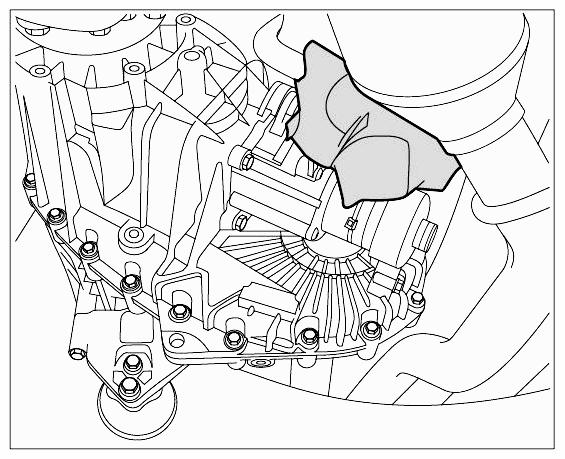

Fig 2: Identifying Heat Protection Cover On Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

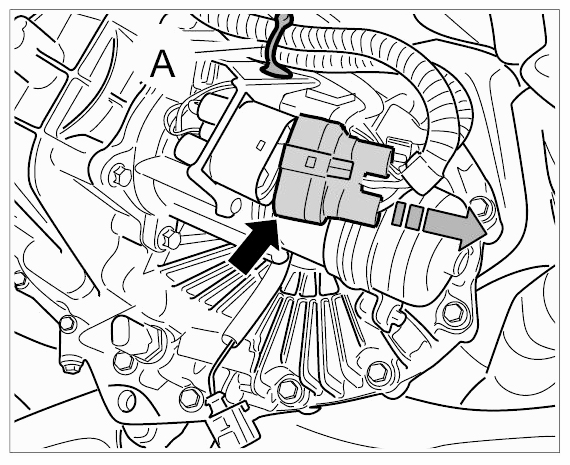

Disconnect Low Range cable plug -arrow- on the servo motor and loosen cable holder -A- .

Fig 3: Locating Low Range Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

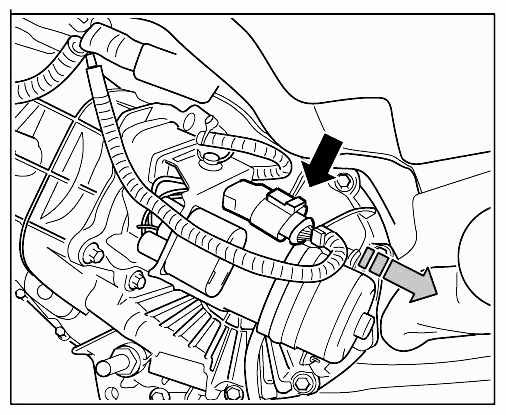

Pull centre-differential lock cable plug -arrow- off the servo motor.

Fig 4: Locating Centre-Differential Lock Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

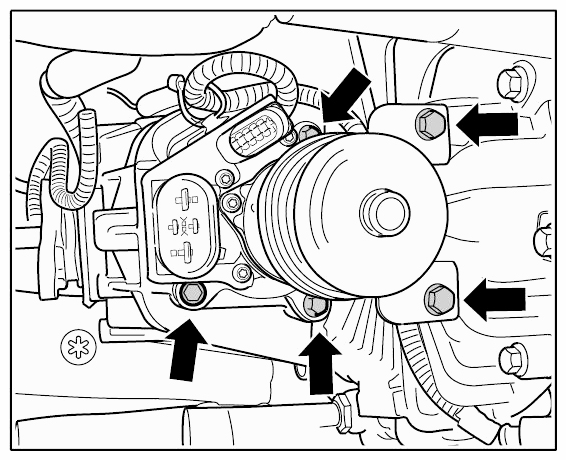

Unscrew servo motor screws on the transfer gear.

Fig 5: Locating Servo Motor Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove servo motor and support.
