Removing Transverse Lock Servo Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

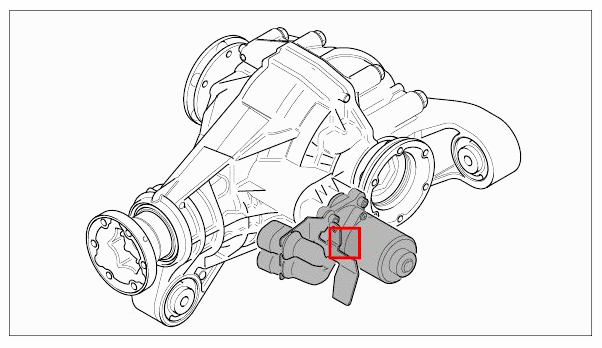

Fig 1: Overview Of Transverse Lock Servo Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

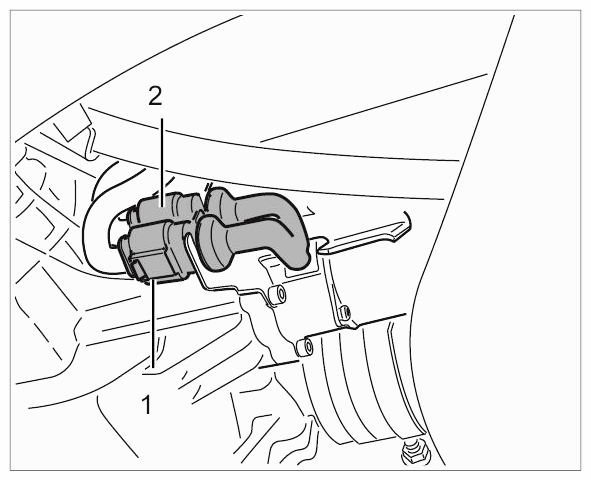

Pull cable plug -1, 2- off the servo motor.

Fig 2: Identifying Servo Motor Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

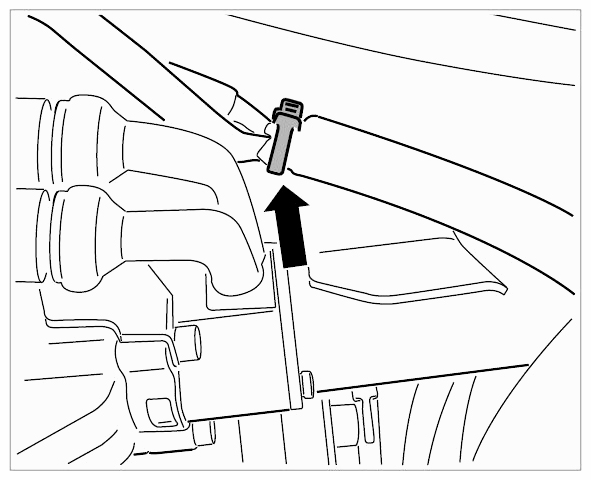

Pull off fastening element -arrow- for cable lead and place line aside.

Fig 3: Locating Cable Lead Fastening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

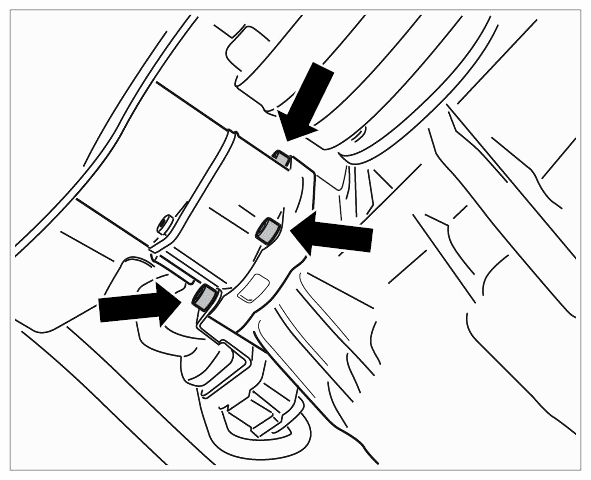

Unscrew four fastening screws -arrows- on the servo motor.

Fig 4: Locating Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Hot fluid
- Danger of scalding
→ Avoid contact with hot fluid.

→ Wear personal protective gear.

Information
- Avoid minor oil leaks when removing the servo motor.
Place oil collection container underneath.
Remove servo motor.
