Installing Transverse Lock Servo Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

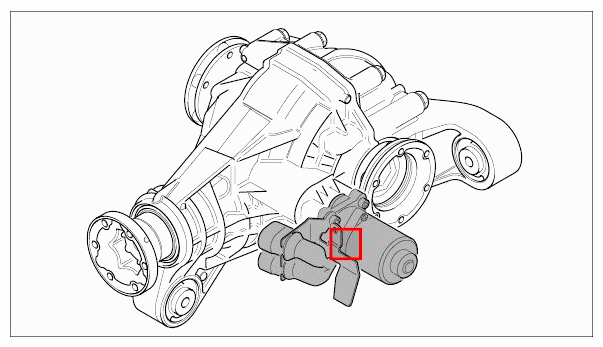

Fig 1: Overview Of Transverse Lock Servo Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

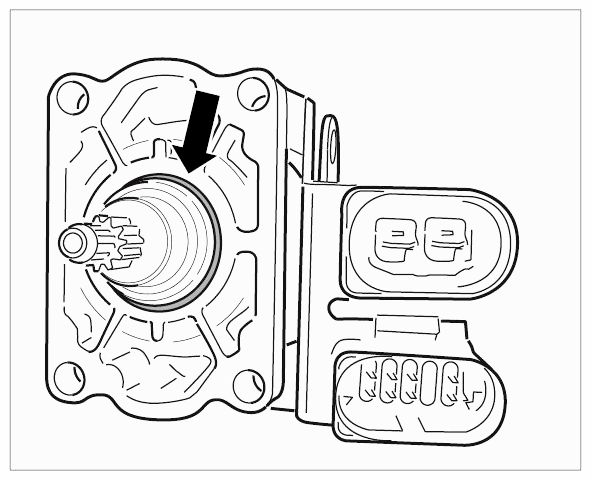

Replace sealing ring -arrow- on servo motor.

Fig 2: Locating Servo Motor Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install servo motor.

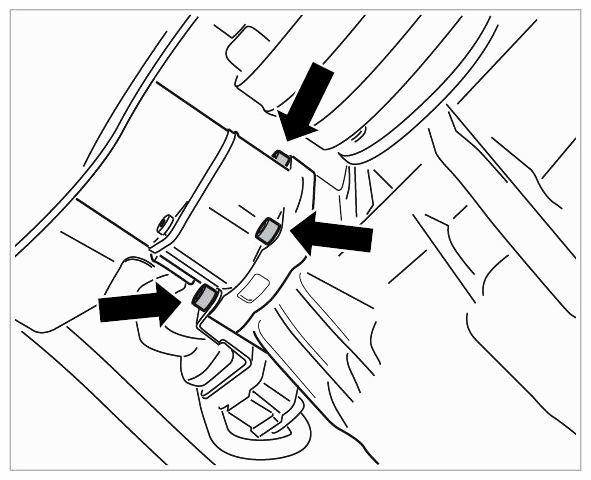

Screw in four screws -arrows- on servo motor. → Tightening torque: 7.5 ft lbs.

Fig 3: Locating Servo Motor Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

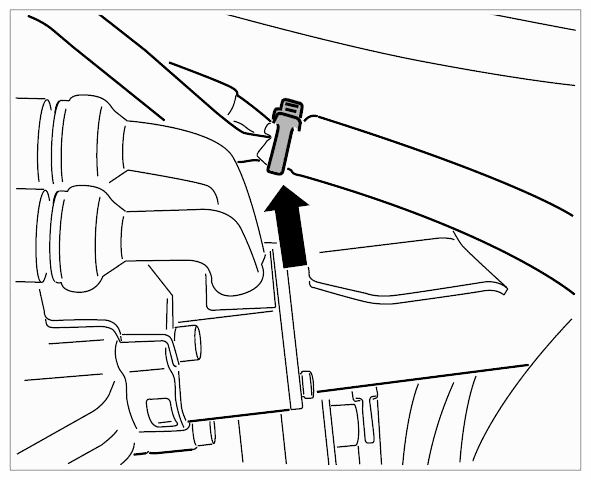

Install fastening element -arrow- for cable lead.

Fig 4: Locating Cable Lead Fastening
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

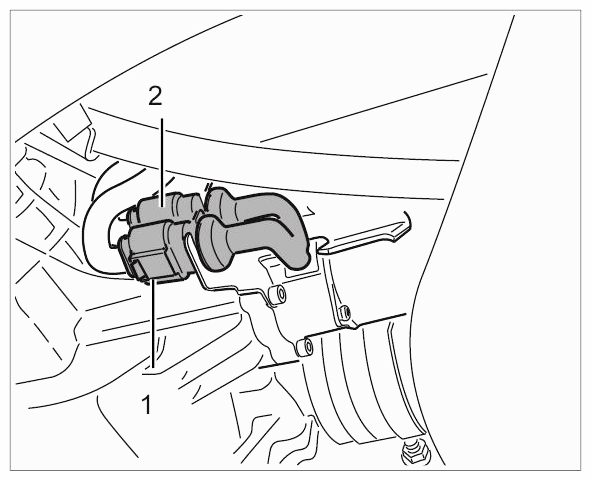

Connect cable plug -1, 2- to servo motor.

Fig 5: Identifying Servo Motor Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
