WM 397519 Removing And Installing Control Unit For Rear-Differential Lock (All Models): Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Designation Type Number Description

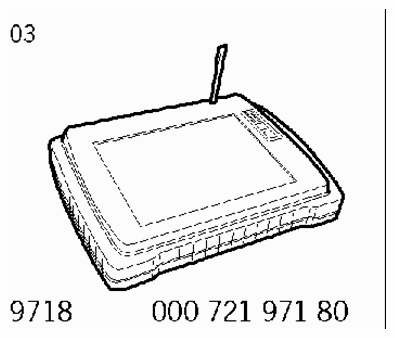

PIWIS Tester Special tool 9718
G09410956
TECHNICAL VALUES

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws securing control unit for rear-differential lock to body   Tightening torque 4.5 Nm (3.0 ft lbs.) +/-1 Nm (+/- 0.5 ft lbs.)
