Removing Transfer Box

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

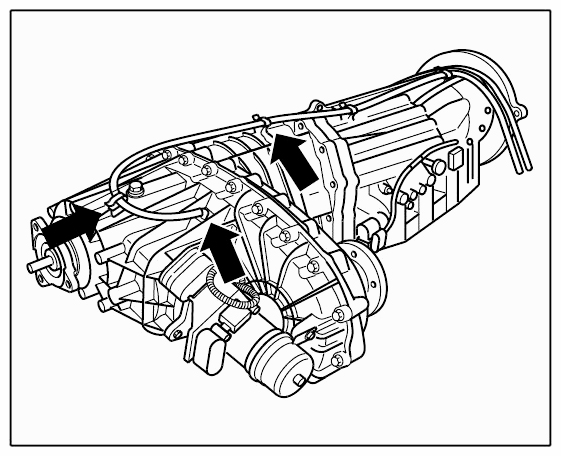

Fig 1: Overview Of Transfer Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

To unscrew the cardan shaft bolts, a second fitter should sit in the vehicle and block the drive train by actuating the foot brake.

Remove front cardan shaft on the transfer box and tie it up.

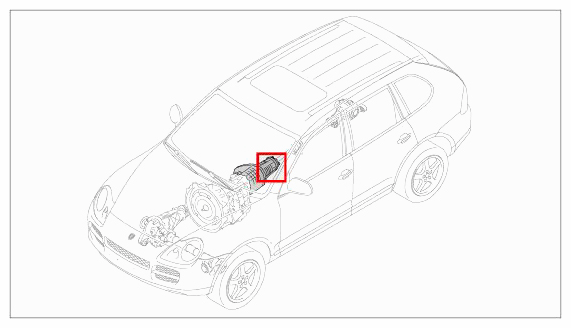

Fig 2: Loosening Cardan Shaft Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove heat protection from cable plugs on servo motor.

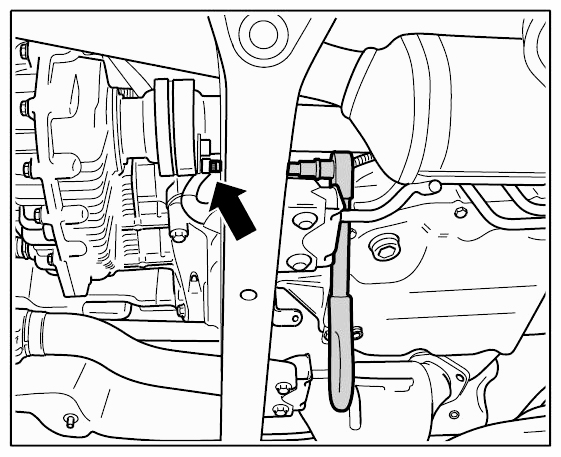

Fig 3: Identifying Heat Protection Cover On Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The temperature sensor -1- on the transfer box is no longer used in model year 2004.
- If there is no temperature sensor, secure cable plug on the servo motor with tie-wraps.

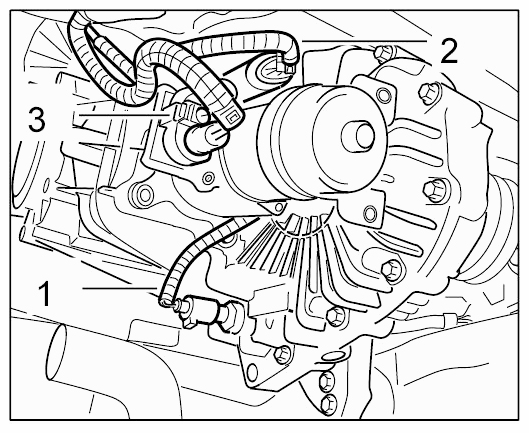

  Fig 4: Identifying Transfer Box Servo Motor Plug Sequence
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off cable plug on the servo motor -1, 2- and release cable holder.

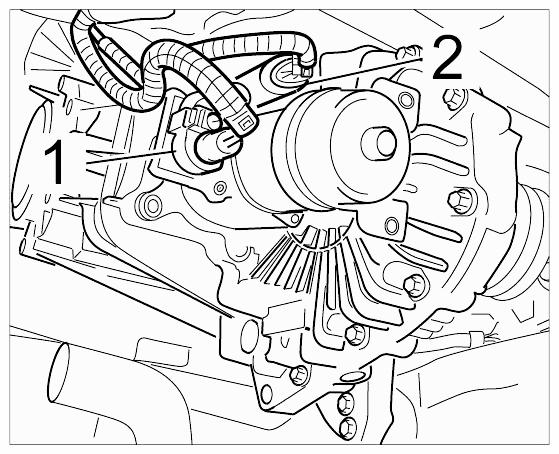

Fig 5: Identifying Servo Motor Cable Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Always observe the exact work sequence when installing/removing the transmission cross member.
Remove transmission cross member.
Support transmission with transmission jack and secure with retaining band.

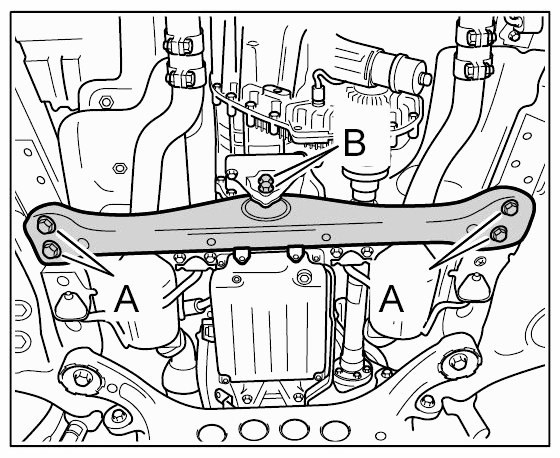

Unscrew bolts on body -A- .

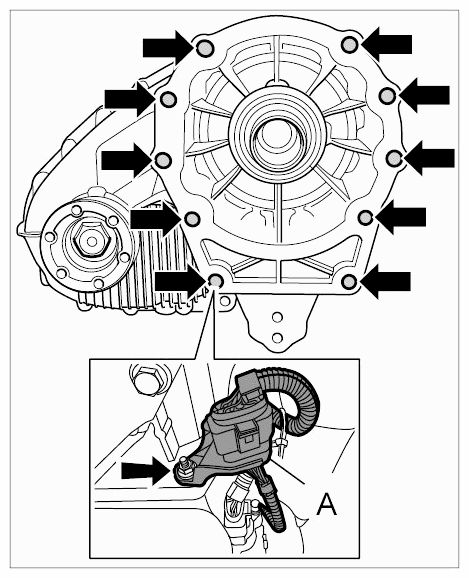

Fig 6: Identifying Transmission Cross Member Bolts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew two transmission cross member screws -B- on transfer box holder.

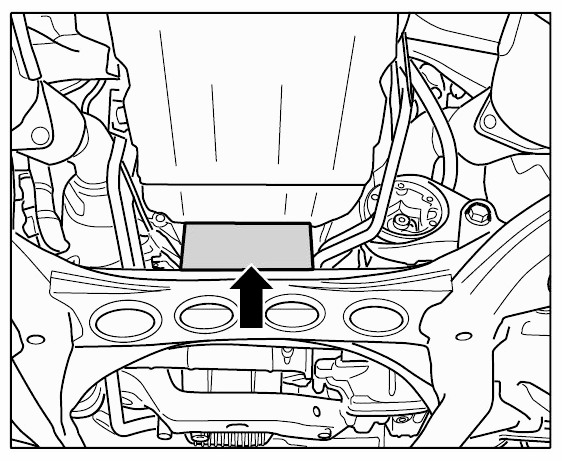

Place a wooden block -arrow- between the converter bell housing and suspension sub-frame.

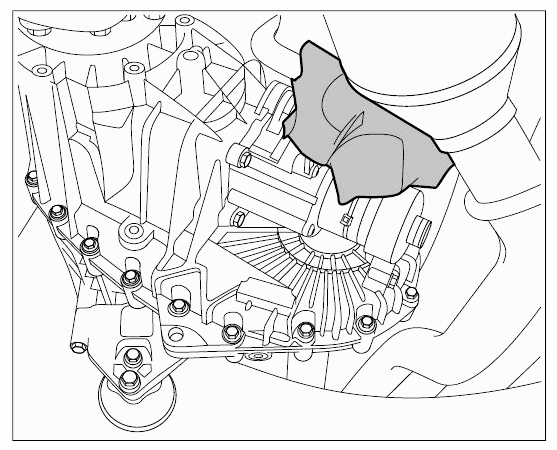

Fig 7: Positioning Of Wooden Block Between Converter Bell Housing And Suspension Subframe
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening nut and push holder with Tiptronic line -A- away to the side.

Fig 8: Locating Tiptronic Line Holder Fastening Nut
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -arrows- securing transfer box to main transmission.

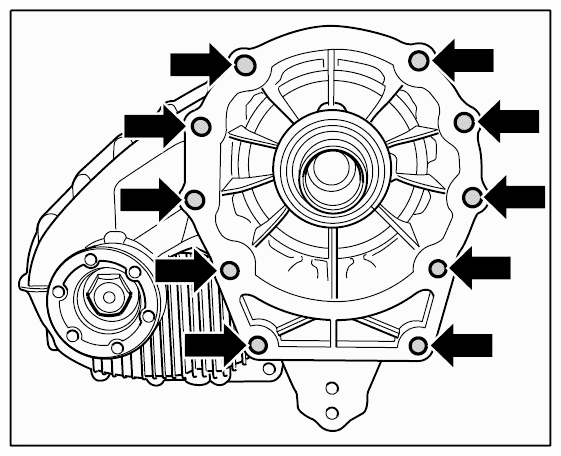

Fig 9: Locating Transfer Box To Main Transmission Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

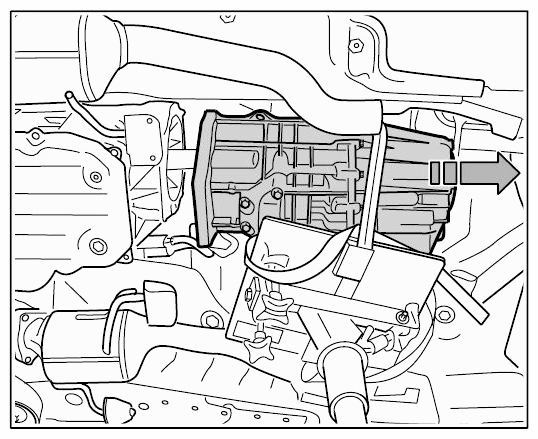

Separate transfer box from main transmission.

Fig 10: Removing Transfer Box
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Gradually drain transfer box. Pull out vent line and remove it from the retainers -arrows- on the upper side.

Fig 11: Locating Vent Line Retainers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
