Removing Sealing Ring For Output Flange

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

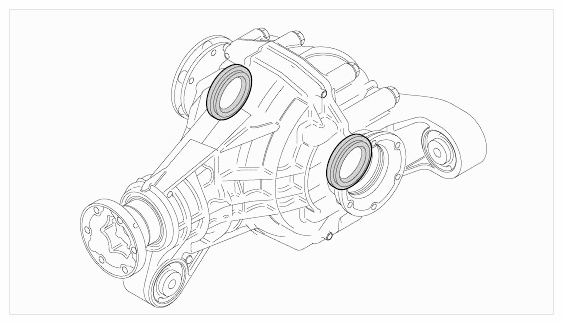

Fig 1: Identifying Sealing Rings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

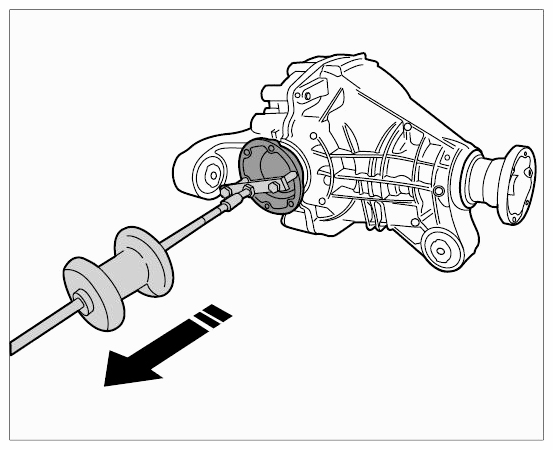

Remove output flange with special tool striker vw 771/1 and shop-made tool .

Fig 2: Removing Output Flange
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

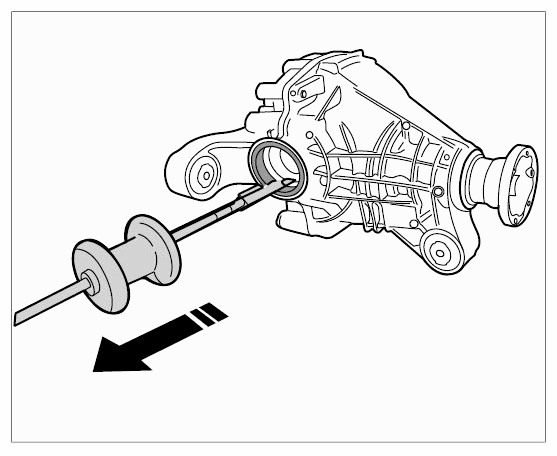

Remove sealing ring with special tool striker vw 771/1 extraction tool vw 771/37.

Fig 3: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
