Installing Sealing Ring For Output Flange

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

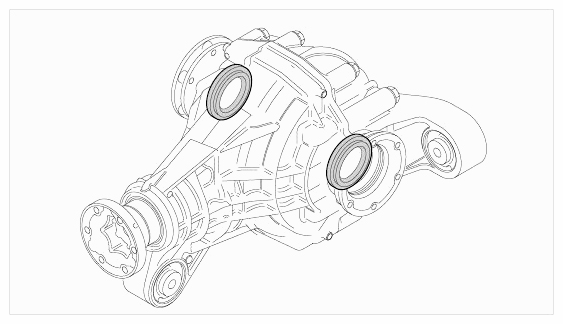

Fig 1: Identifying Sealing Rings

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

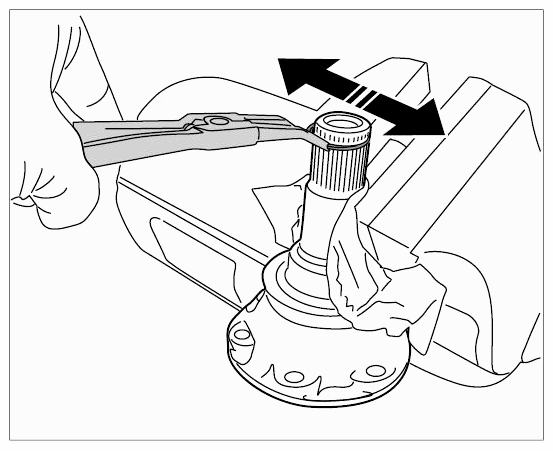

Replace circlip on flange shaft.

Fig 2: Replacing Flange Shaft Circlip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

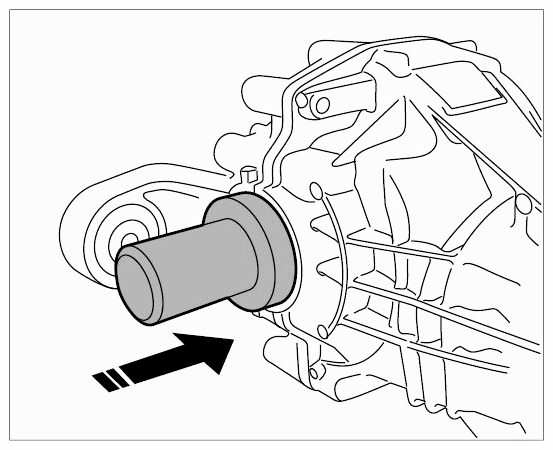

Drive in new sealing ring with special tool pressure piece t10181 until the special tool touches the transmission housing.

Fig 3: Installing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install output flange.
