Installing Transfer Gear Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

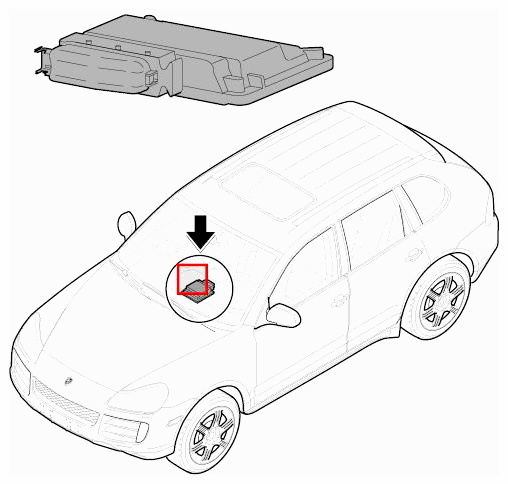

Fig 1: Locating Installation Position Of Transfer Gear Control Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the control unit -A- until the locking lugs -B- engage with an audible click.

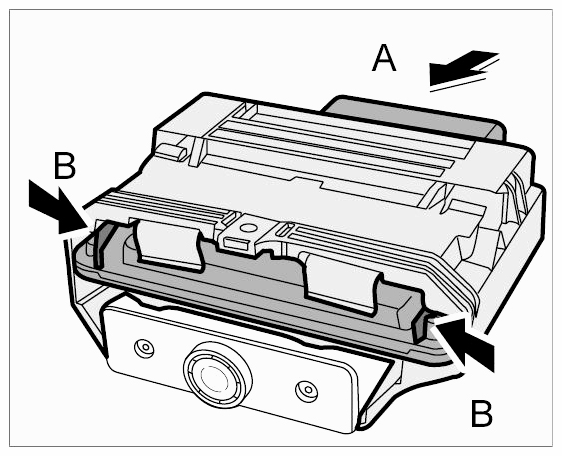

Fig 2: Inserting Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

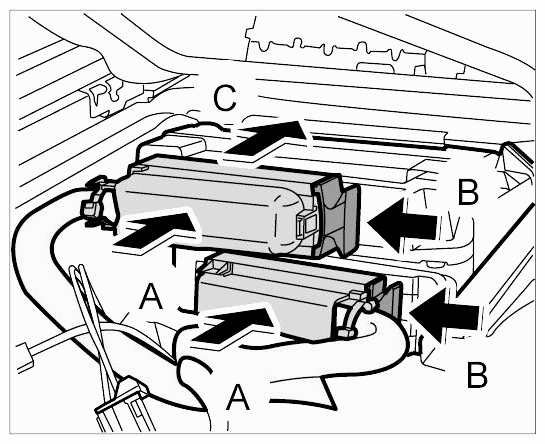

Insert the two connectors -A- and press in the locking mechanism -B- until it engages securely.

Fig 3: Connecting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Place the holder with the two control units in installation position -C- .
Move the seat all the way back and secure the holder with the fastening screw -arrow- .

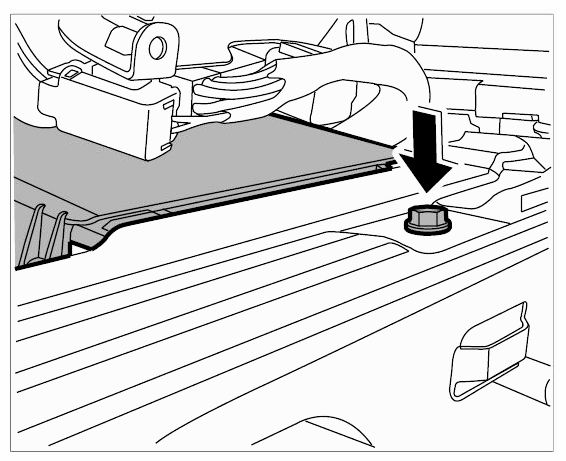

Fig 4: Locating Control Unit Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in right front seat trim and install drawer.
