Technical Data On Transfer Box

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

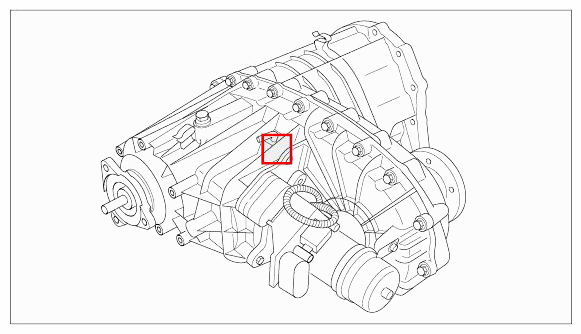

Fig 1: View Of Transfer Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Type: Z 48.20

Installed in: Cayenne

Model year: 2004

Low Range gearing: i = 2.70

Type: Two-stage planetary differential; planetary set

Filling capacity (new filling): → Filling capacity: 0.85 l

Filling capacity (change quantity): → Filling capacity: 0.75 l

Type: Z 48.00/Z 48.50

Installed in: Cayenne S/Cayenne Turbo

Model year: 2003

Low Range gearing: i = 2.70

Type: Two-stage planetary differential; planetary set

Filling capacity (new filling): → Filling capacity: 0.85 l

Filling capacity (change quantity): → Filling capacity: 0.75 l

Type: Z 48.22/Z 48.02/Z 48.52

Installed in: Cayenne/Cayenne S/Turbo

Model year: 2008

Low Range gearing: i = 2.70

Type: Two-stage planetary differential; planetary set

Filling capacity (new filling): → Filling capacity: 0.85 l

Filling capacity (change quantity): → Filling capacity: 0.75 l
